离心机性能及使用范围：赵迪公司所有离心机均采用微电脑控制，液晶显示，不锈钢内腔，全钢制机身，电子安全门锁控制；冷冻离心机采用进口压缩机、无氟制冷剂，节能环保、安全可靠、操作简便。产品广泛应用于农业科学、生物工程、食品、化工、制药、临床医学、血站血库、检验检疫、疾控、环保等科研和生产单位。

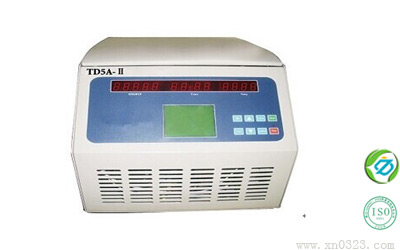

TD5A-Ⅱ 台式低速大容量离心机
TD5A-ⅡTABLE-TYPE LOW-SPEED CENTRIFUGE
产品特性
1微电脑控制，触摸面板，LCD、LED双显示，运行参数可自动记忆，可RCF直接启动，方便操作使用
Microprocessor control, operated by touch panel, visual digital display, operated data can automatic memory, RCF value can be set directly for working and convenient use./convenient operation.
2大力矩无刷变频电机驱动，欧洲进口超高速轴承,运行平稳，免维护
Brushless converter motor which has high torque, Imported super speed bearing fromEurope, smooth running and maintenance free.
3多层减振结构，振动小、噪声低，环保
Multi-storey damping system, the compressor imported fromEuropeoperating without Freon, it is running with low noise and slight vibration and green/environment protection.
4钢制机身，不锈钢离心腔，关键件进口，易清洁，耐用
Behch-top model and steel body, stainless steel centrifugal chamber, key components are imported, easy to clean and durable.
5转子识别系统，超温、超速、门盖、不平衡等保护功能，主机及转子寿命计算功能，确保安全
Automatic rotor identification prevents the rotor from overspeeding. overtemperature, door interlock, strap broken protection. The function of service life calculation, ensure safety. the rotor can be high temperature & high pressure sterilization
6专有的气流导向设计，温升小；专有的SCT转速控制技术，升降速快，省时高效
Special air current disign, the temperature of centrifuge chamber is stable. particular SBT speed control design,the function of fast acceleration and deceleration, save time and best effects.
7、0-9档10种升降速率选择或直接输入升降速时间，可存储40种自定义工作模式，实现最优化离心
Adjustable rise-and-decrease speed from grade 0 to 9 or directly set the time of acceleration and deceleration, and can be store 40 kinds of self-defining operating models to achieve the best results.
8点动功能,短暂离心，便于多样化离心Hold-on and transient centrifuging.
技术参数 TECHNICAL PARAMETER
|
型号 Model |
TD5A-Ⅱ |
|
最高转速 Max Speed |
5500r/min |
|
最大相对离心力 Max RCF |
5310×g |
|
最大容量 Max Capacity |
2000ml |
|
转速精度 Speed Accuracy |
±20r/min |
|
定时范围 Time Rang |
0-99h99min |
|
电源 Power Supply |
AC 220V 50Hz15A |
|
整机噪声 Noise |
≤65dB |
|
外形尺寸 Dimension |
460×590×420mm |
|
重量 Weight |
45kg |
TD5A-Ⅱ转子Rotor
|
转子类型 |
转子号Number |
容量 Capacity |
最高转速 Max Speed (r/min) |
最大离心力 Max RCF(×g) |
试管尺寸（mm） Dimension of tube |
|
水平转子 |
No.63 |
4×50/100ml |
5500 r/min |
5310×g |
Φ38×124 |
|
No.69 |
4×500ml (adaptor 12×50ml/8×100ml) |
4000 r/min |
3580×g |
Φ80×140 |
|
|
No.70 |
4×250ml (adaptor 8×50ml/32×10ml) |
4000 r/min |
3500×g |
Φ64×113 |
|
|
No.77 |
32×10/15ml |
4000 r/min |
2810×g |
Φ16×85-118 |
|
|
No.81 |
8×50ml |
4000 r/min |
2810×g |
Φ28×105-115 |
|
|
No.82 |
48×5ml |
4000 r/min |
2800×g |
Φ14×54 |
|
|
No.84 |
148×7ml |
4000 r/min |
3080×g |
Φ13×78 |
|
|
酶标转子 |
No.44 |
2×48 |
3000 r/min |
1400×g |
酶标板子 Bucket Rotor |
