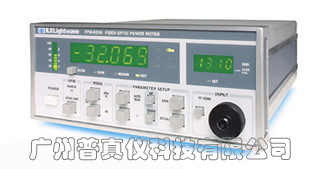

产品名称：FPM-8200 光功率计      现货1台  FPM-8200.pdf
 产品特点

   .在800 到1600nm的波长范围内，光功率最高可测量到1.5dbm

• 动态范围可达75dB，线性率可达±0.015dB
• 校准标准可溯源到NIST标准，校准取样精度在2.5%内
• 按测量值等比例实现模拟输出
• 通用型光纤连接适配器
•  提供IEEE-488 GPIB 标准接口

FPM-8200是专门为光纤光源及光器件的功率测量而设计的一款高性能的光功率计，8200 具有高达75dB的动态测量范围，测量精度为2.5%，可溯源到NIST校准标准。为了保证精确的功率测量，FPM-8200还提供逻辑/线性显示模式、自动范围修正、相对测量模式，以及保存/调用功能，能存储和再利用设备的参数设置。同时，FPM-8200能按测量值等比例实现模拟输出，并提供IEEE GPIB接口。诸多功能和方便的使用特性，使得FPM-8200成为一款在实验室和生产线上得以广泛应用的仪器。
Features
Optical power measurement to +1.5 dBm from 800 to 1600nm
75dB of dynamic range with ±0.015dB linearity over the entire range
NIST-traceable calibration with an accuracy of ±2.5% at reference conditions
Analog output proportional to measured power
Fiber optic connector adapters for the most common fiber optic connectors
IEEE-488 GPIB instrument interface

The FPM-8200 Fiber Optic Power Meter was designed for general purpose precision power

measurements from fiber optic sources and components. The 8200 features a 75dB dynamic

measurement range with a measurement accuracy of 2.5% traceable to NIST calibration

standards. In addition to precision power measurements, the FPM-8200 is loaded with

standard features such as log/linear display modes, auto-ranging, relative measurement

mode, and save/recall functions for storing and retrieving instrument configurations.

These features plus an analog output proportional to measured power and an IEEE GPIB

interface combine to make the FPM-8200 a versatile laboratory or production test

instrument.
