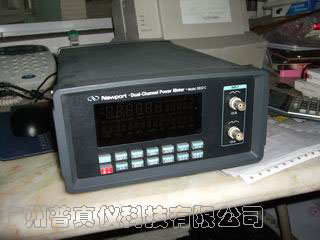

产品名称：NEWPORT
2832-C 光功率计
For optical measurements that require two channels, high-precision, and fast
data
acquisition, the 2832-C is the ideal choice. This is ideal for production
testing of
fiber optic components.
Single- and dual-channel operations are supported, with channels displayed
individually
or simultaneously in dual-channel operation.
The power sensitivity ranges from 100 fW–2W over a wavelength range of
0.19–1.8 μm.
The unit is compatible with Newport’s 818 Series silicon, germanium, and
indium gallium
arsenide detectors, and a wide variety of accessories for measuring bare
or
connectorized fiber or free space light sources.
Measurements can be made in W, A, dBm, dB or relative units. These may be
displayed
directly or as relative ratio measurements from present or stored values.
Moving statistical measurements permit you to compute moving statistics for 1
to 100
measurements with Min, Max, Max-Min, Mean, and Standard Deviation. You may
also select
from many programming features such as sampling frequency and
precision,digital and
analog filtering, and data storage of up to 1000 readings per channel.
Newport_2832C_Datasheet.pdf
现货
