Agilent  N9030A-RT1 Real-time Spectrum
 Analyzer up to 85 MHz Analysis Bandwidth

Functionality

• 85 MHz real-time analysis bandwidth (requires Option B85 or B1X) up to 50 GHz
• Real-time displays include digital persistence, spectrum, spectrogram, power vs. time and more
• Frequency-mask trigger (FMT)

Performance

• 100% probability of intercept (POI) for signals with durations as short as 15 μs
• ≥75 dBc of spurious-free dynamic range

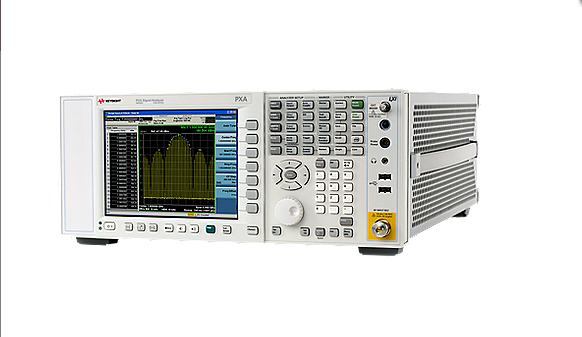

Option RT1 adds the real-time spectrum analyzer (RTSA) capabilities to a new N9030A PXA signal analyzer. Adding RTSA to the PXA lets you see, capture and understand the most elusive signals—known or unknown.

• Enables true gap-free real-time spectrum analysis in a high-performance signal analyzer
  • Quickly switch from must-have measurements—phase noise, noise figure and power—to transient real-time analysis
• Confidently capture the behavior of dynamic signals with durations as short as 15 μs (at 100% POI) with FMT
• Seamlessly integrates with 89600 VSA software for thorough analysis of complex signals
  • Measure over 75 modulation types, from custom OFDM or APSK to standard-based signals such as MIL-STD, GSM or LTE
  • Use frequency-mask trigger to record culprit signals then playback through links to Agilent vector signal generators, arbitrary waveform generators, or MATLAB
• Maximize your investment—add real-time spectrum analyzer capabilities to a PXA at a fraction of the cost of a dedicated solution

Note: A combination of Options PC4 and W7X or PC2 and WXP is required for optimal performance.

This option can be added as a product upgrade.
