品牌：
价格：面议
元/件
供应地：广东省佛山市
产品规格：
凯翔电器公司生产连接器，压线帽多年,规格齐全,销往全国各地,拥有完整、科学的质量管理体系，为您提供高品质,优价格,好服务,欢迎各界朋友莅临参观、指导和业务洽谈。可提供样品.

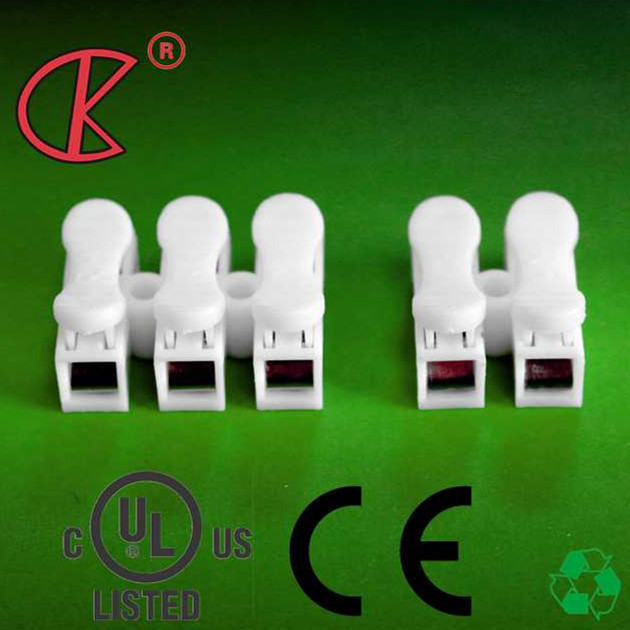

品名:端子台(压线帽 接线帽 接线端）
材质:采用高级工程原料PA66制成外壳,防火等级94-V0,耐高温
电压:300V
导线:软硬单支实心线皆可使用.
安规认证：中国CQC，加拿大CSA，ROHS，REACH和TUV
包装方式：1000粒/包，10000粒/箱
一次性下订单100包以上免运费
特点:外壳为高级工程原料PA66一次成型,不会压破.内部为特长铝片/铜片,耐电流好,对接牢度大,增加电线压接范围使其更易于导电,并更能夹住电线,即使强列振动也不脱落.
用法:将线末端胶皮削去插入套管内,将手松开即可.
应用:各种家电,电机,灯饰及配件等电线的连接部位.如电风扇,排风,灯饰,风机,电机等家庭配线接线器材.
Kaixiang Electric Company production of connectors, bobbin for many years, complete specifications, are sold all over the country, has a complete, scientific quality management system, for you to provide high quality, excellent price, good service, welcome friends from all walks of life come to visit, guidance and business negotiation. Can provide samples.
Name: terminal (bobbin connection cap terminals)
Material: the use of advanced engineering materials PA66 made of shell, fire rating 94-V0, high temperature resistance
Voltage: 300V
Wire: soft and hard single solid wire can be used.
Safety certification: China CQC, Canada CSA, ROHS, REACH and TUV
Packing: 1000 / bag, 10000 / box
One time under the order of more than 100 free shipping
Features: the shell for a senior engineering material PA66 molding, not crushed. Internal specialty aluminum / copper resistance, good current and docking fastness, increase the scope of wire Crimp make it easier to conductive and more clamping wires, even if strong vibration or loss.
Usage: the line end cut rubber inserted into the casing, the handle is released.
Application: a variety of household appliances, electric motors, lighting and accessories, such as the connecting parts of the wire, such as electric fans, exhaust, lighting, fans, motors and other household wiring wiring equipment.
产品介绍
|
Specifications
Material
Remark
Glow-wire
test
|
Press
button peel off wire and inside terminal ,then release button ,till wire not
easy to be pulled out
Apply to
kind of miniwatt electric equipment ,LED lighting etc.
UL proved
material ,94v-0,acidproof,slkali-resisting ,high-insulation ,Durability and
hard to aging.
Suitable
for single solid wire.
Pass
750Cand 850C Glow-wire test from TUV
|
|
产品说明
材质
摘要
灼热丝测试
|
按下按键，将已剥去外皮的电线插入端子导体内，再放开按键，导线不容易松脱落即可。使用于各种小功率电器产品，LED照明等配线。
采用UL认可的防火等级为94V-0的材料制成，耐碱，耐酸，绝缘性良好，耐久性不易老化。
适用于单支实心导线配线。
通过TUV750℃和850℃灼热丝测试
|
|
型号
Model
|
产品名称
Products
name
|
长度L
Length
|
宽度C
Width
|
高度mm
Heidht
|
配线孔尺度mm
Diameter
|
螺丝孔口径
Screw hole diameterΦD
|
包装方式Package
|
|
H
|
H2
|
A
|
B
|
C
|
Pcs/Bag
|
Pcs/Ctn
|
|
KX-P2
(V2)
|
P2快接端子台
|
19.5
|
17
|
12.8
|
8.2
|
5.2
|
5.3
|
3.8
|
3
|
1000
|
10000
|
|
KX-P2
(V0-750℃&850℃)
|
P2快接端子台
|
19.5
|
17
|
12.8
|
8.2
|
5.2
|
5.3
|
3.8
|
3
|
1000
|
10000
|
