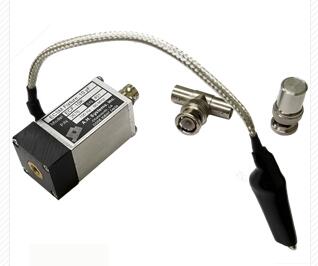

TTE ALB8 滤波器
型号：ALB8
设计类型 : Butterworth Low Pass Filter
Number of Poles : from 2 to 10
Specify Any Freq. (F-3dBc
) : from 0.10Hz to 1MHz
Input Level : 2 volts less than the supply voltage
Case Choices include : PCB or BNC’s
Operating Temperature : 0°C to +70°C
Gain at Fo: Unity +0.20dB
Power Supply Voltage : +5VDC min. to +18VDC max.
Supply Current : 15mA
Input bias current : 50pA
Offset voltage : 5mV
Offset drift : 10μV/°C
Noise voltage : 210nV/Hz
Noise current : 0.06p/Hz
Input impedance：10
Output impedance : 100?’s
Insertion Loss：0+0.2dB
F-3dBc Range Specify any Frequency：1.0Hz to 200kHz
Stopband：48dB
