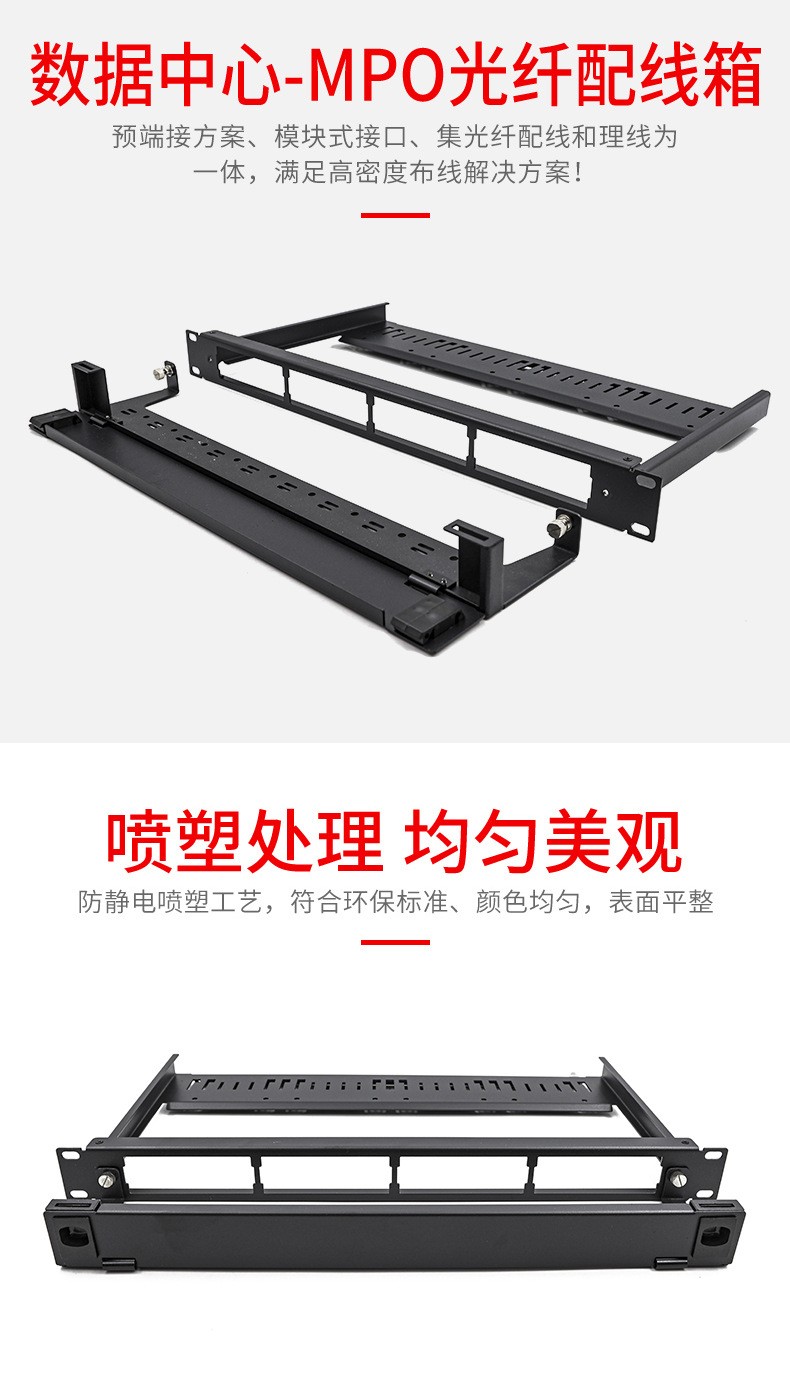

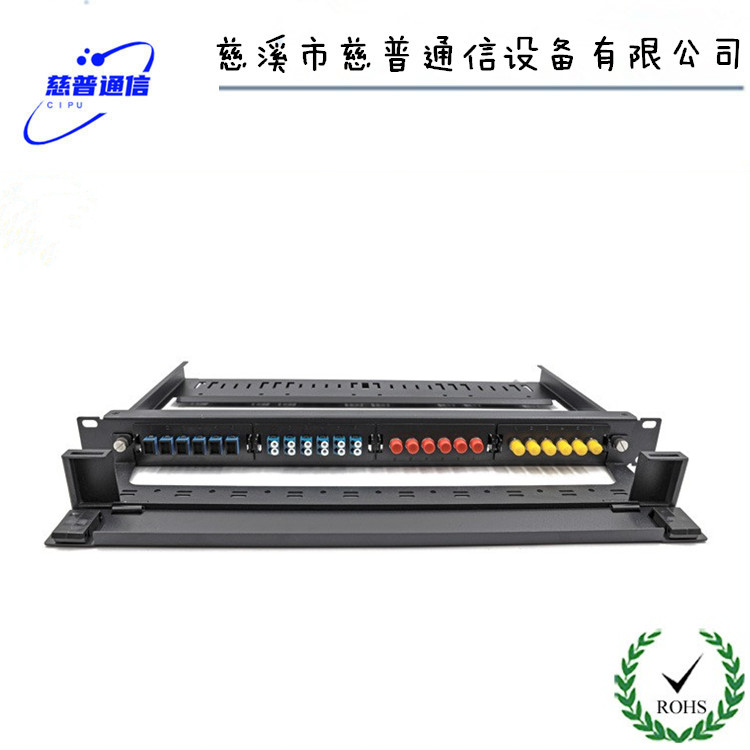

网络通信机房数据中心通用机架式MPO96芯光缆配线架 MPO光纤机架箱 MPO光缆配线架
来源:[慈普通信设备有限公司]
联系人：姜先生
手机：19523043604
电话：-
传真：-
QQ：2232685099
Email：
地址：地区
品牌：慈普通信
价格：160.00
元/台
供应地：
产品型号：MPO-96
■ Products DeSCRJPTion

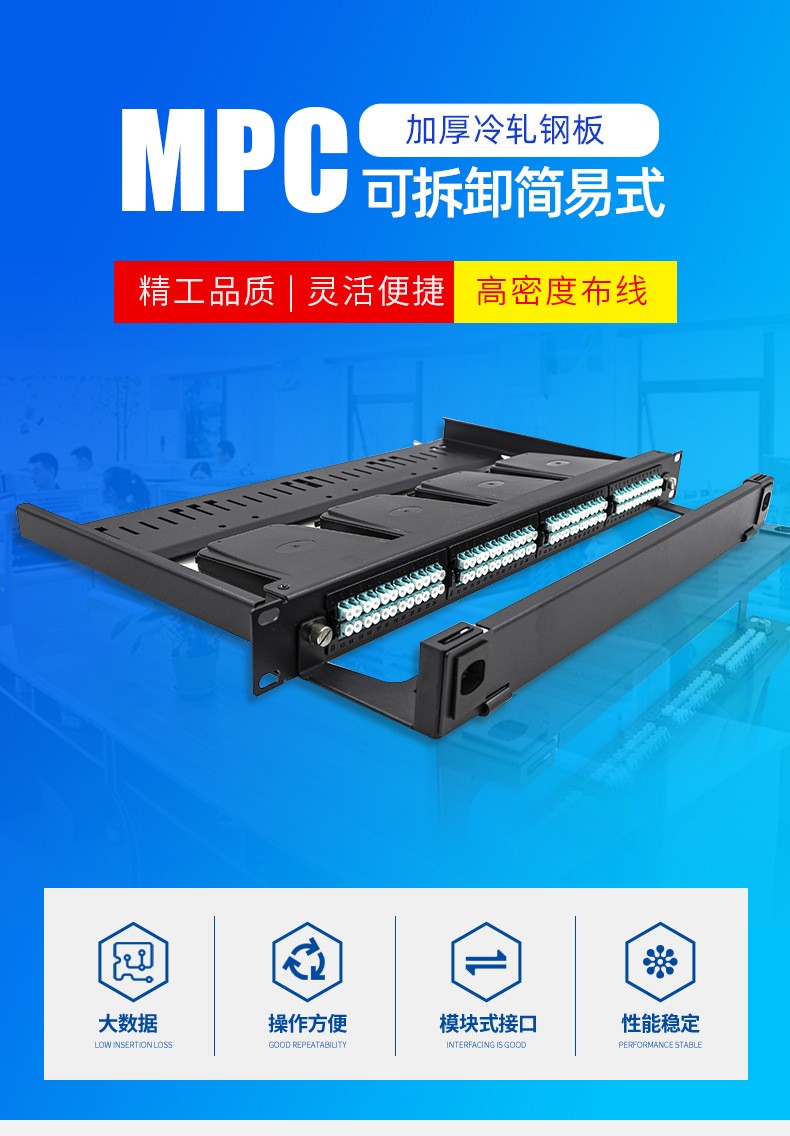

CP / MPO is a MPO /MTP® pre-terminated ultra-high-density junction box, 19 inches, 1U
height up to 96 cores, can be used in data centers, computer rooms, computer centers and
other high-density wiring LOCAIIONs (front and rear). The dual use of the upper cover,
pull-out guide rails, ABS lightweight modular packaging box, etc., make LS/MPO easy to
use in high-density scenarios, whether it is a cable or a cable. The chassis is equipped with 4
PCS 24F MPO /MTP® module boxes, each module box can install 12 DLC adapters to
achieve 24 cores. Each module box has a separate buckle, which can be easily installed
without restriction.
■ Keyed Characteristics
1. Ultra-high density wiring application scenario;
2. Standard 19-inch width;
3. Ultra high density reaches 1U 96 cores;
4. Double rail design for easy installation and maintenance;
5. Lightweight ABS material MPO/MTP module box;
6. Spray surface treatment process;
7. Customized color and silk screen LOGO.
■ Technical Details
Executive standard
YD/T788 optical distribution frame
Connector 1
MPO/MTP®
Connector2
LC UPC
Fiber Mode Connection
Single-mode OS2 & Multi-mode OM3/OM4
Working temperature
- 5℃ ~ + 40℃
Storage temperature
- 25℃ ~ + 55℃■ Ordering Information
Salt spray test
72 hours
hours Relative humidity
≤95% (at +40℃)
Atmospheric pressure
76-106kpa
Withstand voltage level
≤3000V (DC)
Insertion loss
UPC≤0.2dB; APC≤0.3dB
Return loss
UPC≥50dB; APC≥60dB
Plugging durability
≥1000 times
ASTM rating
4B
Adhesion
ISO rating
P/N
Size(mm)
Max. Fibers
Pack Size
Color
Accessories
CP/MPO
482.6 x 350 x 44
96
57*28*38
Black
(RAL9005)
Beige(RAL1001)
15pcs cable tie
12pcs
Hook-and-Loop
Fasteners
6pcs winding tube
