GM500 is designed to provide customers with global network coverage on the connectivity of LTE. It delivers 50Mbps upload and 150Mbps download data rates on LTE networks and can also be fully backward compatible with existing 3G and 2G networks.GM500 is P2P with ME3630 series. Rx diversity which allows the end-device to be equipped with two distinct cellular antennas improving the quality and reliability of the wireless connectivity. A rich set of internet protocols (PAP and CHAP used for PPP connections)and abundant functions (GNSS, Remote wakeup, TCP/UDP, FTP, HTTP, SMS) extend the applicability of the module to a wide range of M2M applications. GM500 also allows the integration of automotive and other applications requiring assured extended operating temperature range and mechanical ruggedness within the ever-shrinking space inside electronic bays in trucks, automobiles, and other mobile platforms.

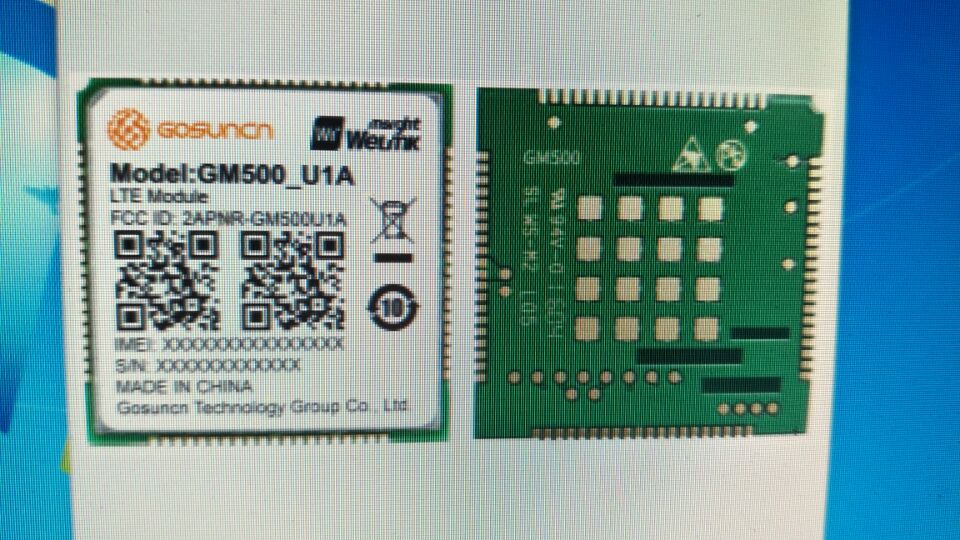

GM500

LTE/WCDMA/GSM Module

For M2M Applications

GNSS

Rx diversity

LTE FDD: DL 150Mbps / UL 50Mbps

Embedded TCP/UDP

USB 2.0

Embedded FTP/HTTP

Auto suspend & remote wakeup

LTE FDD/WCDMA &GSM

8-wires UART

Pin-to-Pin with LCC 30*30 serial module

-40℃ ~ 85 ℃
