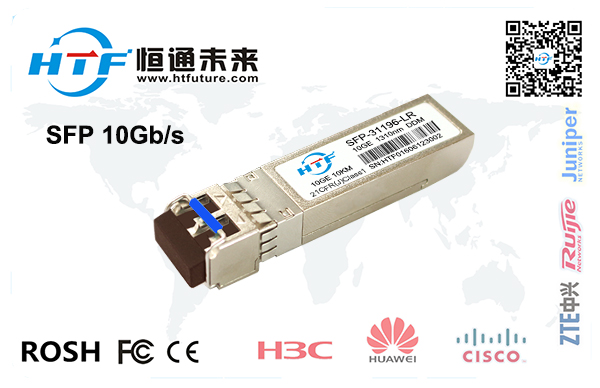

10Gb/s 1310nm SFP+ 10km
Transceiver
Product
Features
l 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
l 1310nm DFB transmitter, PIN
photo-detector
l Up to 10km transmission on SMF
l Duplex LC connector
l Metal enclosure, for lower EMI
l Electrical interface compliant to SFF-8431
l Specifications for 10 Gigabit “SFP+”
l 2-wire interface for management
l Specifications compliant with SFF 8472
l Single 3.3V power supply
l Power dissipation < 1.5W
l Case operating temperature range: -5°C to 70°C
Applications
l 10GBASE-LR/LW 10G Ethernet
Standard
l Compliant to SFF-8431
l Compliant to SFF 8472
l Compliant to 802.3ae 10GBASE-LR.
l RoHS Compliant.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Storage Temperature
Ts
-40
-
85
oC
Storage Ambient Humidity
HA
5
-
95
%
Operating Relative Humidity
RH
-
-
85
%
Power Supply Voltage
VCC
-0.3
-
4
V
Signal Input Voltage
Vcc-0.3
-
Vcc+0.3
V
Recommended
Operating Conditions
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Case Operating Temperature
Tcase
0
-
70
oC
Without air flow
Power Supply Voltage
VCC
3.14
3.3
3.47
V
Power Supply Current
ICC
150
mA
Data Rate
BR
10.3125
Gbps
Transmission Distance
TD
-
10
km
Coupled fiber
Single mode fiber
9/125um SMF
Optical
Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Note
Transmitter
Output Opt. Pwr
POUT
-6
-0.5
dBm
1
Optical Wavelength
λ
1260
1310
1355
nm
Spectral Width (-20dB)
σ
1
nm
Optical Extinction Ratio
ER
3.5
dB
Transmitter and Dispersion Peanlt
TDP
3.2
dB
RIN
RIN
-128
dB/Hz
Output Eye Mask
Compliant with IEEE 0802.3ae
Receiver
Rx
Sensitivity
RSENS
-14.4
dBm
2
Input Saturation Power
(Overload)
Psat
0.5
dBm
Wavelength
Range
λC
1260
1600
nm
LOS
De -Assert
LOSD
-17
dBm
LOS
Assert
LOSA
-30
dBm
LOS
Hysteresis
0.5
1.0
dB
05
09
2020
10Gb/s光模块1310nm SFP+ 10km 10Gb/s光模块10KM SFP+万兆模块40KM 10G多模光纤模块300M
来源:[深圳恒通未来科技有限公司]
联系人：胡先生
手机：18928411596
电话：0755-23777185(805)
传真：0755-23777185(808)
QQ：877340738
Email：877340738@qq.com
地址：广东省深圳市深圳市深圳市龙华新区大浪展润商务大厦10楼
品牌：HTF
价格：100.00
元/只
供应地：广东省深圳市
产品型号：1310nm SFP+ 10km
