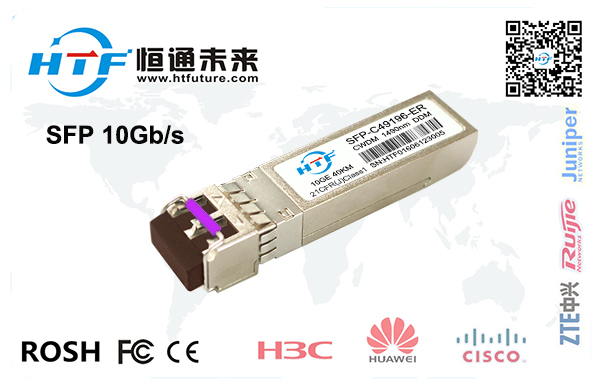

10Gb/s CWDM SFP+ 40km Transceiver(1270-1450nm)
Product Features
l
Up to 11.1Gbps Data Links
l
Up to 40km transmission on SMF
l
Power dissipation < 1.5W
l
Uncooled CWDM DFB Laser and PIN receiver
l
Metal enclosure, for lower EMI
l
2-wire interface with integrated Digital Diagnostic monitoring
l
Hot-pluggable SFP+ footprint
l
Specifications compliant with SFF 8472
l
Compliant with SFP+ MSA with LC connector
l
Single 3.3V power supply
l
Case operating temperature range:0°C to 70°C
Applications
l
10GBASE-ER/EW & 10G Ethernet
Standard
l
Compliant to 802.3ae 10GBASE-ER/EW
l
Compliant to SFF-8431
l
RoHS Compliant.
Product selection
HTFPPC-XX96-40BD
Wavelength
xx
Wavelength
xx
1270 nm
27
1370 nm
37
1290 nm
29
1390 nm
39
1310 nm
31
1410 nm
41
1330 nm
33
1430 nm
43
1350 nm
35
1450 nm
45
Absolute Maximum
Ratings
Parameter
Symbol
Min
Typ
Max
Unit
Note
Storage Temperature
Ts
-40
-
85
oC
Storage Ambient Humidity
HA
5
-
95
%
Operating Relative Humidity
RH
-
-
85
%
Power Supply Voltage
VCC
-0.3
-
4
V
Signal Input Voltage
Vcc-0.3
-
Vcc+0.3
V
Recommended Operating
Conditions
Parameter
Symbol
Min
Typ
Max
Unit
Note
Case Operating Temperature
Tcase
0
-
70
oC
Without air flow
Power Supply Voltage
VCC
3.14
3.3
3.47
V
Power Supply Current
ICC
-
450
mA
Data Rate
BR
10.3125
Gbps
Transmission Distance
TD
-
40
km
Coupled fiber
Single mode fiber
9/125um SMF
Optical Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Note
Transmitter
Output Opt. Pwr
POUT
-1
3
dBm
1
Optical Wavelength
λ
λ-6.5
λ+6.5
nm
2
Spectral Width (-20dB)
σ
1
nm
Optical Extinction Ratio
ER
3.5
dB
Transmitter and Dispersion Peanlty
TDP
3
dB
Side mode Supression ratio
SMSR
30
dB
RIN
RIN
-128
dB/Hz
Output Eye Mask
Compliant with IEEE 802.3ae
Receiver
Receiver Sensitivity
Psen
-15
dBm
3
Input Saturation Power (Overload)
PSAT
0.5
dBm
Input Optical Wavelength
λIN
1270
1610
nm
LOS -Assert Power
PA
-17
dBm
LOS -Deassert Power
PD
-30
dBm
LOS -Hysteresis
PHys
0.5
dB
Notes:
1.
Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
2.
λ”is:1270,1290,1310,1330,1350,1370,1390,1410,1430,1450, please the
“product selection” .
3.
Measured with a PRBS
231-1 test pattern, @10.325Gb/s, BER<10-12 .
Electrical
Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Note
Supply Voltage
Vcc
3.14
3.3
3.46
V
Supply Current
Icc
450
mA
Transmitter
Input differential impedance
Rin
100
Ω
1
Differential data input swing
Vin,pp
180
1200
mV
Transmit Disable Voltage
VD
Vcc–1.3
Vcc
V
Transmit Enable Voltage
VEN
Vee
Vee+ 0.8
V
2
Transmit Disable Assert Time
10
us
Receiver
Differential data output swing
Vout,pp
300
850
mV
3
Data output rise time
tr
30
ps
4
Data output fall time
tf
30
ps
4
LOS Fault
VLOS fault
Vcc–1.3
VccHOST
V
5
LOS Normal
VLOS norm
Vee
Vee+0.8
V
5
Power Supply Rejection
PSR
100
mVpp
6
Notes:
1.
Connected directly to TX data input pins. AC coupled thereafter.
2.
Or open circuit.
3.
Input 100 ohms differential termination.
4.
These are unfiltered 20-80% values
5.
Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1
indicates no signal detected.
6. Receiver sensitivity is
compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to
specified value applied through the
recommended power supply filtering network.
Pin DeSCRJPTions
Pin
Symbol
Name/DeSCRJPTion
Note
1
VEET
Transmitter Ground
(Common with Receiver Ground)
1
2
TFAULT
Transmitter Fault.
2
3
TDIS
Transmitter Disable. Laser output disabled on high or open.
3
4
SDA
2-wire Serial Interface Data Line
4
5
SCL
2-wire Serial Interface Clock Line
4
6
MOD_ABS
Module Absent. Grounded within the module
4
7
RS0
Rate Select 0
5
8
LOS
Loss of Signal indication.
Logic 0 indicates normal operation.
6
9
RS1
No connection required
1
10
VEER
Receiver Ground (Common
with Transmitter Ground)
1
11
VEER
Receiver Ground (Common
with Transmitter Ground)
1
12
RD-
Receiver Inverted DATA out.
AC Coupled
13
RD+
Receiver Non-inverted DATA out.
AC Coupled
14
VEER
Receiver Ground (Common
with Transmitter Ground)
1
15
VCCR
Receiver Power Supply
16
VCCT
Transmitter Power Supply
17
VEET
Transmitter Ground
(Common with Receiver Ground)
1
18
TD+
Transmitter Non-Inverted DATA in. AC Coupled.
19
TD-
Transmitter Inverted DATA in.
AC Coupled.
20
VEET
Transmitter Ground
(Common with Receiver Ground)
1
05
09
2020
