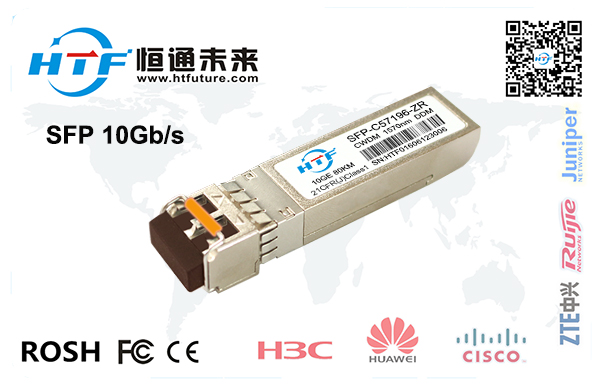

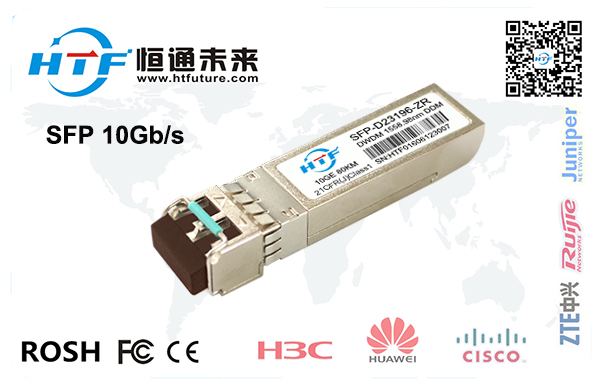

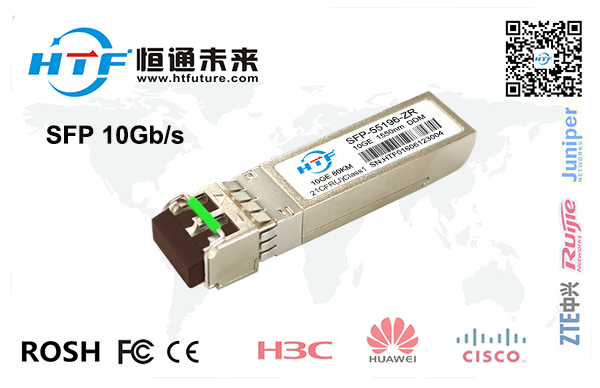

10Gb/s 1550nm SFP+ 80kmTransceiver
Product Features
l
Up to 11.1Gbps Data Links
l
Up to 80km transmission on SMF
l
EML transmitter and APD receiver
l
Metal enclosure, for lower EMI
l
2-wire interface with integrated Digital Diagnostic monitoring
l
Hot-pluggable SFP+ footprint
l
Specifications compliant with SFF 8472
l
Compliant with SFP+ MSA with LC connector
l
Single 3.3V power supply
l
Case operating temperature range:0°C to 70°C
l
Power dissipation < 1.5 W
Applications
l
10GBASE-ZR/ZW
Standard
l
Compliant to SFF-8431
l
Compliant to SFF 8472
l
RoHS Compliant.
Product DeSCRJPTion
SFP+ transceiver HTFPP-1596-80D is designed for use in 10-Gigabit
Ethernet links up to 80km over single mode fiber. The module consists of 1550
EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly.
Digital diagnostics functions are available via a 2-wire serial interface, as
specified in SFF-8472. The module data link up to 80km in 9/125um single mode
fiber.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Storage Temperature
Ts
-40
-
85
oC
Storage Ambient Humidity
HA
5
-
95
%
Operating Relative Humidity
RH
-
-
85
%
Power Supply Voltage
VCC
-0.3
-
4
V
Signal Input Voltage
Vcc-0.3
-
Vcc+0.3
V
Recommended Operating Conditions
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Case Operating Temperature
Tcase
0
-
70
oC
Without air flow
Power Supply Voltage
VCC
3.14
3.3
3.47
V
Power Supply Current
ICC
-
450
mA
Data Rate
BR
10.3125
Gbps
Transmission Distance
TD
-
80
km
Coupled fiber
Single mode fiber
9/125um SMF
Optical Characteristics
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Transmitter
Average Launched Power
PO
0
4
dBm
Note (1)
Extinction Ratio
ER
6
dB
Center Wavelength
λc
1530
1550
1565
nm
Spectrum Band Width (RMS)
σ
1.0
nm
SMSR
30
dB
Transmitter OFF Output Power
POff
-30
dBm
Transmitter and Dispersion Penalty
TDP
3.0
dB
Output Eye Mask
Compliant with IEEE 802.3ae
Receiver
Input Optical Wavelength
λ
1270
1610
nm
Receiver Sensitivity
-23
dBm
Note (2)
Input Saturation Power (Overload)
Psat
-7
dBm
Receiver Reflectance
Rrx
-27
dB
LOS Detect -Assert Power
PA
-32
dBm
LOS Detect - Deassert Power
PD
-24
dBm
LOS Detect Hysteresis
PHYS
0.5
dB
