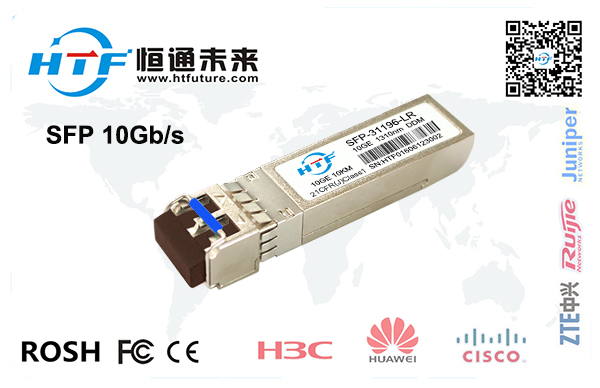

10Gb/s 1310nm SFP+ 10km
Transceiver
Product
Features
l 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
l 1310nm DFB transmitter, PIN
photo-detector
l Up to 10km transmission on SMF
l Duplex
LC connector
l Metal
enclosure, for lower EMI
l Electrical
interface compliant to SFF-8431
l Specifications
for 10 Gigabit “SFP+”
l 2-wire
interface for management
l Specifications
compliant with SFF 8472
l Single
3.3V power supply
l Power
dissipation < 1.5W
l Case
operating temperature range: -5°C to 70°C
Applications
l 10GBASE-LR/LW
10G Ethernet
Standard
l Compliant
to SFF-8431
l Compliant
to SFF 8472
l Compliant
to 802.3ae 10GBASE-LR.
l RoHS
Compliant.
Absolute Maximum Ratings
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Storage Temperature
Ts
-40
-
85
oC
Storage Ambient Humidity
HA
5
-
95
%
Operating Relative Humidity
RH
-
-
85
%
Power Supply Voltage
VCC
-0.3
-
4
V
Signal Input Voltage
Vcc-0.3
-
Vcc+0.3
V
Recommended
Operating Conditions
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Case Operating Temperature
Tcase
0
-
70
oC
Without air flow
Power Supply Voltage
VCC
3.14
3.3
3.47
V
Power Supply Current
ICC
150
mA
Data Rate
BR
10.3125
Gbps
Transmission Distance
TD
-
10
km
Coupled fiber
Single mode fiber
9/125um SMF
Optical
Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Note
Transmitter
Output Opt. Pwr
POUT
-6
-0.5
dBm
1
Optical Wavelength
λ
1260
1310
1355
nm
Spectral Width (-20dB)
σ
1
nm
Optical Extinction Ratio
ER
3.5
dB
Transmitter and Dispersion Peanlt
TDP
3.2
dB
RIN
RIN
-128
dB/Hz
Output Eye Mask
Compliant with IEEE 0802.3ae
Receiver
Rx
Sensitivity
RSENS
-14.4
dBm
2
Input Saturation Power
(Overload)
Psat
0.5
dBm
Wavelength
Range
λC
1260
1600
nm
LOS
De -Assert
LOSD
-17
dBm
LOS
Assert
LOSA
-30
dBm
LOS
Hysteresis
0.5
1.0
dB
Notes:
1.
Class 1 Laser Safety per FDA/CDRH and
IEC-825-1 regulations.
2.
Measured with a PRBS 231-1
test pattern, @10.325Gb/s, BER<10-12 .
Electrical Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Note
Supply
Voltage
Vcc
3.14
3.3
3.46
V
Supply
Current
Icc
150
mA
Receiver
Differential
data output swing
Vout,pp
300
850
mV
3
Data
output rise time
tr
30
ps
4
Data
output fall time
tf
30
ps
4
LOS
Fault
VLOS fault
Vcc–1.3
VccHOST
V
5
LOS
Normal
VLOS norm
Vee
Vee+0.8
V
5
Power
Supply Rejection
PSR
100
mVpp
6
