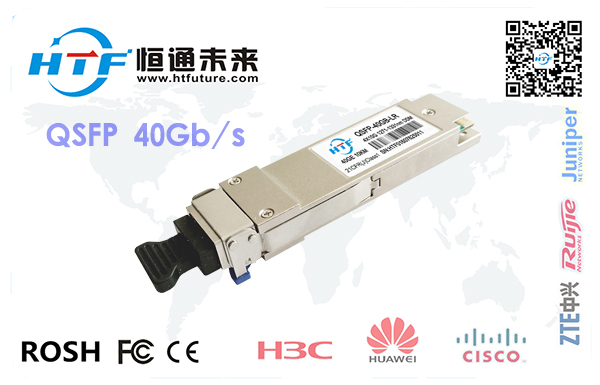

HTF/恒通未来 40Gb/s光模块 QSFP+ LR4 10KM 百分百完美兼容华为、华三、思科、中兴、锐捷、博达、赫思曼、TB-LINK、Juniper、惠普、神州数码、Extreme、Brocade、D-Link、Avaya…等国内外品牌设备
40Gb/s QSFP+ LR4 Transceiver
Product Features
l 4 CWDM lanes Mux/Demux design
l Up to 11.1Gbps Data rate per wavelength
l Up to 10km transmission on SMF
l Electrically hot-pluggable
l Digital Diagnostics Monitoring Interface
l Compliant with QSFP+ MSA with LC connector
l Case operating temperature range:0°C to 70°C
l Power dissipation < 3.5 W
Applications
l 40G Ethernet
l Data Center and LAN
Standard
l Compliant to IEEE 802.3ba
l Compliant to SFF-8436
l RoHS Compliant.
General DeSCRJPTion
HTFuture’s QSFP+ LR4 is designed
to operate over single-mode fiber system using 4X10 CWDM channel in 1310 band
and links up to 10km. The module converts 4 inputs channel of 10Gb/s electrical
data to 4 CWDM optical signals, and multiplexes them into a single channel for
40Gb/s optical transmission. Reversely, on the receiver side, the module
optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to
4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and
1331 nm. It contains a duplex LC connector for the optical interface and a
38-pin connector for the electrical interface. Single-mode fiber (SMF) is
applied in this module. This product converts the 4-channel 10Gb/s electrical
input data into CWDM optical signals (light), by a 4-wavelength Distributed
Feedback Laser (DFB) array. The 4 wavelengths are multiplexed into a single 40Gb/s data, propagating out of the
transmitter module via the SMF. The receiver module accepts the 40Gb/s optical
signals input, and de-multiplexes it into 4 CWDM 10Gb/s channels. Each
wavelength light is collected by a discrete photo diode, and then outputted as
electric data after amplified by a TIA.
The product is designed with form factor, optical/electrical connection
and digital diagnostic interface according to the QSFP+ Multi-Source Agreement
(MSA) and compliant to 40G QSFP+ LR4 of IEEE 802.3ba.
Recommended Operating Conditions
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Case Operating Temperature
Tcase
0
-
70
oC
Without air flow
Power Supply Voltage
VCC
3.14
3.3
3.47
V
Power Supply Current
ICC
-
800
mA
Data Rate
BR
10.3125
Gbps
Each channel
Transmission Distance
TD
-
10
km
Coupled fiber
Single mode fiber
9/125um SMF
Optical Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
NOTE
Transmitter
Wavelength
Assignment
λ0
1264.5
1271
1277.5
nm
λ1
1284.5
1291
1297.5
nm
λ2
1304.5
1311
1317.5
nm
λ3
1324.5
1331
1337.5
nm
Total
Output. Power
POUT
8.3
dBm
Average
Launch Power Per lane
-7
2.3
dBm
Spectral
Width (-20dB)
σ
1
nm
SMSR
30
dB
Optical
Extinction Ratio
ER
3.5
dB
Average
launch Power off per lane
Poff
-30
dBm
Transmitter
and Dispersion Peanlty
TDP
2.3
dB
RIN
RIN
-128
dB/Hz
Output
Eye Mask
Compliant with IEEE
802.3ba
Receiver
Rx
Sensitivity per lane（OMA）
RSENS
-11.5
dBm
1
Input Saturation Power
(Overload)
Psat
3.3
dBm
Receiver Reflectance
Rr
-26
dB
