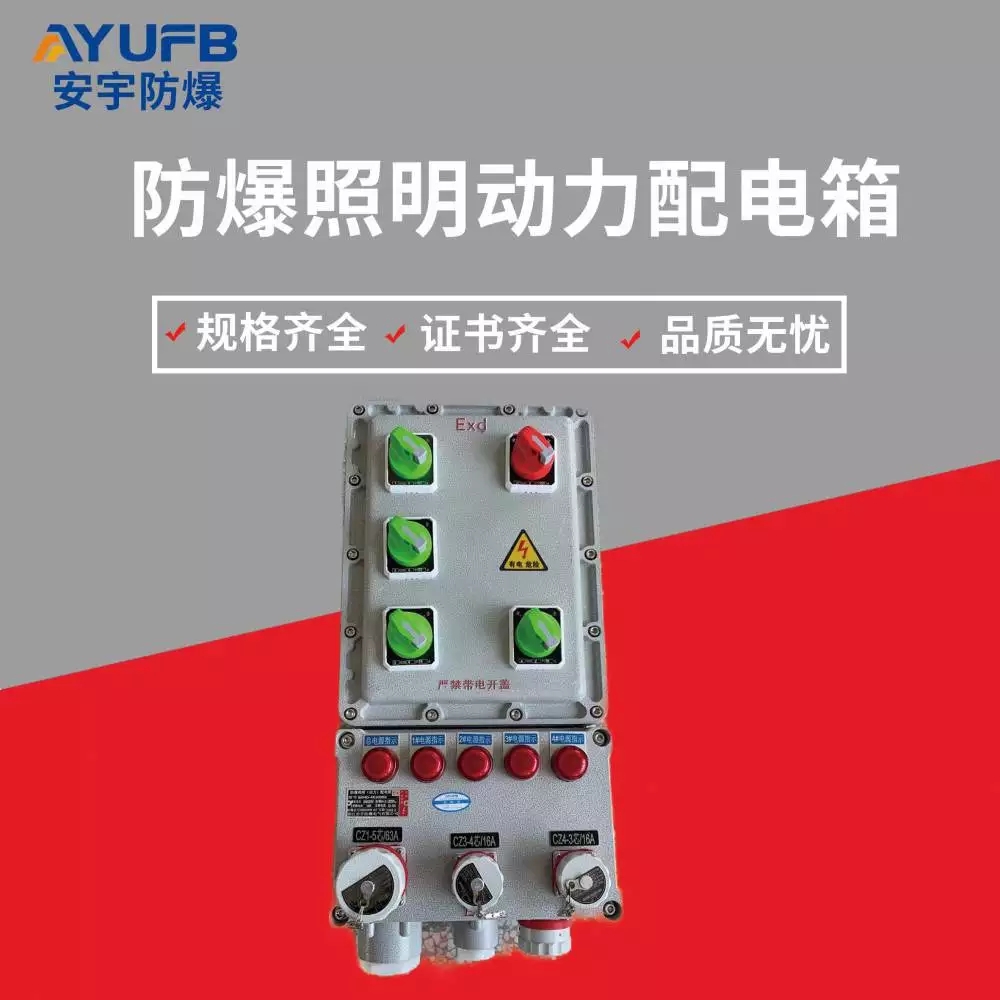

一、BXMD53-4K风机防爆动力配电箱带防雨罩

随着石油、矿业等产业的飞速发展，BXMD53防爆配电箱的使用越来越广泛，品种越来越多。在爆炸性气体危险场所里如何防止配电箱事故性 的发生已经成为十分重要的课题。由于配电箱在工作时不可避免地产生电火花，它们一旦与场所内爆炸性气体混合物相遇，就会导致爆炸事故的发生，直接危及国家财产和公民的生命安全。因此，它的防爆技术问题早已引起了人们的普遍关注和高度重视。

With oil, chemicals, mining and the rapid development of industry, the use of distribution box is more and more extensive,, they once and in places with explosive air mixture meet, and will lead to an explosion accident,, it has caused the explosion technology people general attention and high attention.

二、产品特点：BXMD53-4K风机防爆动力配电箱带防雨罩

Three, product features:

1.外壳采用ZL102铝合金压铸或钢板焊接成型，表面高压静电喷塑，配不锈钢外露紧固件，产品外形美观。

102 aluminum alloy with die casting or steel welding forming, electric static spraying the surface high pressure, with stainless steel exposed fasteners, product appearance.

2.设计精良，安全易用，我公司免费提供一年保

, safety is easy to use, I the free provides a years maintenance

3.箱体图纸可由贵公司提供，或由我公司代为制作.

, or by my company to manufacture.

4.采用复合型，模块结构，各回路可根据需要自由组装，一般开关箱采用隔爆型结构，母线箱及出线箱采用增安型结构.

, module structure, each loop can be according to need to free assembly, general switch box adopts flameproof structure, mother and out the kit is included as standard kit is included as standard is the structure of increasing Ann.

5.内装元件可根据用户要求安装高分断路器或塑壳式断路器。如DZ47、C65、CM1等。

47, C65, CM1, etc.

6.可根据客户要求特制，如加装电涌保护器、电流表、电压表等，外可配挂锁金属手柄。

, such as the surge protector, ammeter, voltmeter and so on, can match the padlock metal handles.

53防爆照明配电箱适用于照明和动力线路，具有分断、过载、失压保护和短路自动切断功能，钢管或电缆布线均可.

, with points break, overload, pressure loss and short circuit protection auto-cutting function, steel pipe or cable wiring.

8.符合GB3836-2000,IEC60079标准要求。

3836-2000, IEC60079 standard requirements.

三、主要技术参数:BXMD53-4K风机防爆动力配电箱带防雨罩

Three, main technical parameters:

1、防爆标志：ExdeⅡCT6

1, explosion-proof sign: Exde Ⅱ CT6

2、防护等级：IP65

2, the protective level: IP65

3、防腐等级：WF1

3, the anti-corrosion class: WF1

4、安装形式：挂式

4, installation forms: hanging

5、额定电压：AC220V/380V

5, rated voltage: AC220V / 380 V

6、总开关电流：250A

6, total switch maximum current: 250 A

7、支回路电流：63A

7, A loop maximum current: 63 A

8、进线口螺纹：G1"～G3"

8, the inlet thread: G1 "~ G3"

9、出线口螺纹：G1/2"～G1 1/2"

9, outlet thread: G1/2 "~ the G1 1/2"

10、进线口电缆外径：Φ12mm～Φ56mm

10, the inlet cable diameter: Φ 12 mm ~ Φ 56 mm

11、出线口电缆外径：Φ8mm～Φ26mm

11, outlet cable diameter: Φ 8 mm ~ Φ 26 mm。
