High power electric heating  Heating tool  Hot air tools  Air heater

当前位置: 首页> 电工电气、照明> 电热设备> 其他电热设备
来源:[保定市中和机械设备制造有限公司]
联系人:李女士
手机:17325290682
电话:0312-8016368
传真:0312-8016368
QQ:3341903073
Email:3341903073@qq.com
地址:河北省保定市清苑县河北
品牌:玝琳
价格:4350.00 元/
供应地:河北省保定市

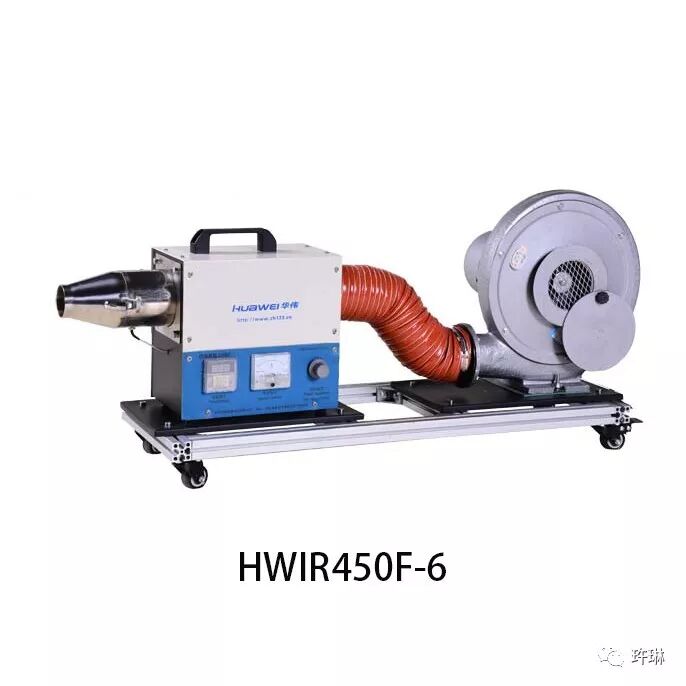

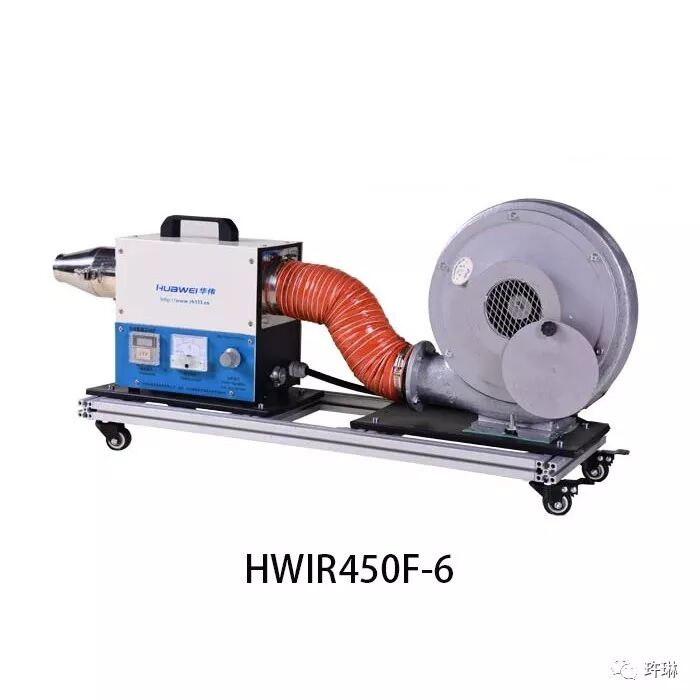

产品型号:HWIR450F-6

HWIR450F-6 industrial hot air blower (medium voltage) stepless power conditioning hot blower (adjustable power, digital display temperature) is suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries, as well as heating and temperature rise in large area and large space.Because of its small volume and light weight, it is easy to move.And it has high thermal efficiency,so it can work continuously without interruption,it is durable and has accurate temperature control.

Characteristic:

Temperature control system

A solid state electronic stepless voltage regulation method is adopted to control the power output, control the temperature and stabilize the output. The temperature control meter can not control the temperature, it can only display the temperature.

Air inlet interface

The machine adopts a tight air inlet interface, and the selection performance of the wind source is strong .

Air volume selection

Manual adjustment of air volume

This machine is equipped with medium pressure fan, and the air inlet port has air volume adjusting valve. It can adjust the intake volume according to the need.

Insulation

Multi-fiber insulation cotton insulation, strong machine shell makes the machine safe and reliable in use, can keep high temperature work for a long time.

Digital display temperature regulation

The outlet is equipped with a temperature sensor, which can adjust the potentiometer to adjust the temperature according to the need. The maximum use temperature is 350 ℃. (need to obscured blower inlet to reduce air volume). The maximum temperature is 85 ℃ under normal air volume.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.

Security

It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.

Classification

Item

Parameter

Size

Machine size

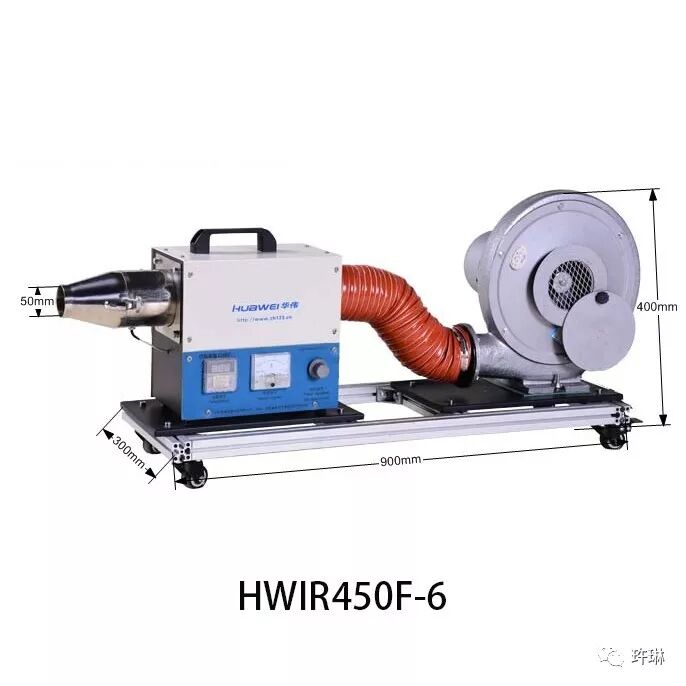

See picture

Vent

Diameter 89mm 50mm

air intake

Diameter 89mm

Insulation layer

Material

Multi fiber insulation cotton

Heater

Name

Electric hot wire

Heater power

4.5KW

Power regulation

Regulated by potentiometers

Heating wire life

10000 hours

Air intake

Blower

250W Medium pressure bloweroptional other power blower

Maximum wind volume

450m3/h

Full pressure

1200pa

Vent



diameter

89mm   50mm

Outlet maximum air volume

420m3/h

Maximum temperature of outlet

350small air intake is needed


Temperature of outlet at maximum air volume

>85

Power Supply



Power demand

220V  two-phase

Power

4750W

weight

Weight

23KG
