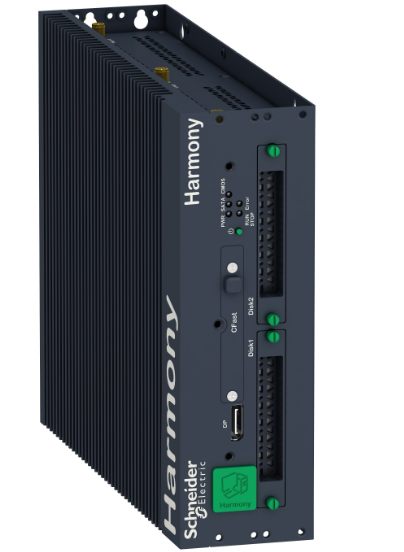

Harmony iPC

模块化框PC

Modular BOX PC 高性能型

Intel QM87

2 内部SATA HDD/SSD 带HMIYMADSDD1驱动器，用于安装 热插拔RAID英特尔快速存储技术
1 CFast卡
1 mSATA

Intel 高清图片5000

Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subSCRJPTion cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included

IDisplay
模块化显示HMIDM

PC panel on HMIDM modular display

壁挂式安装
平板安装
Book mounting

英特尔Core微处理器 i7 4650U 睿频加速3.3GHz

8 GB DDR3内存 内部 (not expandable)
512 Kb MRAM 内部

2 槽 适用 mini PCI Express全尺寸

3200 x 2000 pixels at 60 Hz

1…255 ms

Fanless
风扇 需要安装PCI/Pcle卡

Screw connector, connector type: pin, 1 way, circuit application: ground - LOCAIION: bottom
Connector, connector type: SMA, 3 ways - LOCAIION: top

Display port with 1 on bottom
Display port with 1 on front
Ethernet with 2 RJ45 I210, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 supported
COM1 串行链接 适用 备用电池 和 1 针型SUB-D 9 RS232/422/485 在…上 下接线
USB 2.0 port with 2 USB type A, transmission rate: 480 Mbit/s on bottom
USB 3.0 port with 2 USB type A, transmission rate: 5 Gbit/s on bottom
TPM connector Ver 1.2 适用 网络安全-硬件加密 TPM module HMIYMINATPM201 to be installed/default installed 在…上 母板

24 V DC power supply
100...240 V AC power supply

18…36 V

8.9 A

40.0 W (盒)
44.0 W (with 4:3 12" Display HMIDM6421)
43.0 W (with Wide 12" Display HMIDM6521)
45 W (with 4:3 15" Display HMIDM7421)
46 W (with Wide 15" Display HMIDM7521)
48 W (with Wide 19" Display HMIDM9521)
51 W (with Wide 22" Display HMIDMA521)

ON/OFF button

65.2 mm

207 mm

254 mm

3.1 kg

2 槽 适用 mini PCIe

Class A group 1 EN 55011
EN 61000-6-4
EN 61131-2
FCC part 15
UL 61010

CE
CULus
CULus CSA 22-2 No 142
CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01
CULus HazLoc Class I Division 2 CSA 22-2 No 213
ATEX
CCC
RCM
Marine GL 桥级认证
EAC
IEC Ex hazardous LOCAIIONs 3GD zone 2/22

CE 声明

2006/95/EC - 低压指令
2004/108/EC - 电磁兼容

IP40 符合 IEC 60529

免于高频干扰 符合 IEC 61000-4
干扰场辐射A类 符合 EN 55011
传导和辐射干扰A类 符合 EN 55022

-30…70 °C conforming to IEC 60068-2-2
-30…70 °C conforming to IEC 60068-2-14

10…95 % non-condensing conforming to EN/IEC 60068-2-30

0…55 °C (by default) conforming to EN/IEC 60068-2-2
0…50 °C 平板安装 符合 EN/IEC 60068-2-2
0…45 °C 在…上 PCI/PCIe HMIDM 模块化显示器，带HDD 符合 EN/IEC 60068-2-2
0…40 °C 平板安装 在…上 HDD 符合 EN/IEC 60068-2-2
0…40 °C 平板安装 在…上 mini PCIe 符合 EN/IEC 60068-2-2
0…40 °C 平板安装 在…上 PCI/PCIe 符合 EN/IEC 60068-2-2
0…50 °C 符合 2 在…上 mini PCIe HMIDM 模块化显示器 符合 EN/IEC 60068-2-2

2000 m conforming to IEC 60664-1

2 gn (f = 5…500 Hz)SSD 或 CFast
1 gn (f = 5…500 Hz)HDD

3.100 kg

65.000 mm

207.000 mm

254.000 mm
