主要信息
产品系列
Harmony XK
产品类型

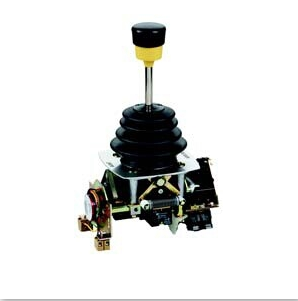

整套操纵杆控制器
应用领域
轻型起重应用
补充信息
产品短名
XKB
边框材料
金属
固定圈材料
金属
每件单独销售数量
1
保护处理
TC
贮存环境温度
-40…70 °C
运行温度
-20…70 °C
过电压种类
Class I conforming to IEC 61140
IP 保护等级
IP54 conforming to IEC 60529
符合标准
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14
产品认证
UL
RRS
CSA
CCC
触点额定工作特性
Q300
A300
操作头位置信息
全方位
操纵杆外形
Standard handle
每个方向凹槽
1…3 notches at 12°-20°-28° for each direction
机械寿命
1000000 次
抗振动
6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6
抗冲击
20 gn (duration = 11 ms) conforming to IEC 60068-2-6
接线能力
Captive screw clamp terminals, <= 2 x 1.5 mm2 with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm2 without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm2
短路保护
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
约定发热电流 [Ith]
10 A conforming to EN/IEC 60947-5-1
10 A conforming to CSA C22.2 No 14
10 A conforming to UL 508
额定绝缘电压 [Ui]
500 V (pollution degree 3) conforming to IEC 60947-1
型号
XKB
