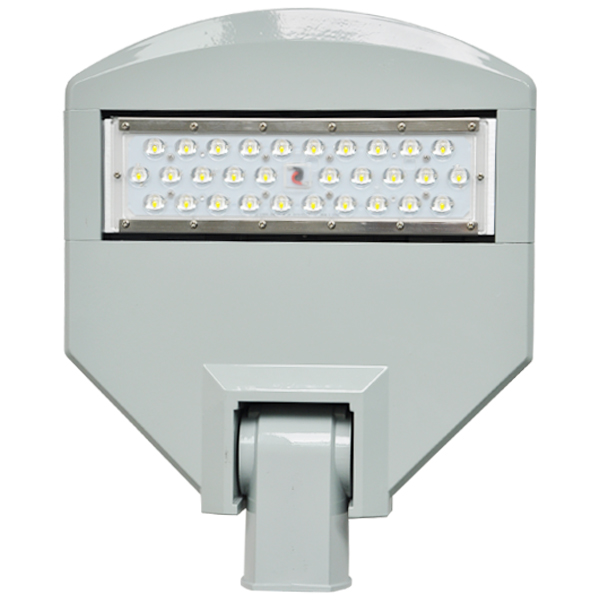

50W LED Street Light  50WLED路灯  LED模块路灯

当前位置: 首页> 电工电气、照明> 室外照明灯具> 道路照明灯
来源:[深圳市雷亚德光电有限公司]
联系人：曾先生
手机：18665470452
电话：0755-29816150(8090)
传真：0755-29816585
QQ：66946045
Email：service@leyond.com.cn
地址：广东省深圳市深圳市宝安区石岩北环路华丰圳宝工业园2栋3楼
品牌：
价格：面议 元/PCS
供应地：广东省深圳市
产品型号：

  • Features：
  • high quality power supply, input voltage 100-277V. The power efficiency is morethan 90%, power factor greater than 0.98, UL compulsory certification.
    Adopting Lepower led light sources and ZAG lens technology, 8% lightefficiency higher than the same type lights in the market, with higher lighttransmittance up to 98%.
    Duct type thermal design, reduce the weight of the light and ensure goodheat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the followingmaintenance cost.
    Low energy consumption    ，matching high efficiency constant-current driver, 60%energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of theproducts.
    Durable lights with long life span up to 50000 hours; No need frequentreplacements of lights and regular maintenance.
    Green environmental protection, no UV light and infrared radiation, nomercury pollution.
    Nice appearance and non-fouling properties, Protection class IP66.
    Work without strobe, fast transient response    ；A wide range of working voltage.
     2pcs 1W chips are packaged in one led, which ensure high stability andalso reduce the death rate of the leds.
    • Technical Data：

    Dimension：

    Module  Quantity Dimension  of Lights  (L*328*98)  Net  Weight
    1 399*328*98mm 5.3kg


    Specification：
    Electrical Specifications

    Product Model Module  Quantity Power  Input  Voltage/Frequency Input  Current Power  Factor Efficiency  of the Driver
    LY-SL11050 1 50W

    AC90~305V

    50/60Hz     		0.64A/115VAC

    >0.98/115VAC

    >0.95/230VAC     		>93%


    Optical Specifications：

    Product  Model Module  Quantity Power Luminous  Flux Light  efficiency CRI CCT Lens  Degree
    LY-SL11050 1 50W 6500LM 130lm/W

    >45

    >60

    >65

    2800-3000K

    3000-3500K

    4000-4500K

    5000-5500K

    		150°x70°


    Mechanical Specifications：

    Module  Quantity Package  Size The  gross weight/Carton IP Life  Span Material of Housing
    1 460*388*168mm 6.5kg IP66 50000hs Aluminum alloy+PC


    Light Distribution Curve Diagram：


    Luminous Decay Curve：
    At 25℃，LED working by 3250mA，continually lighting 8 hours a day，the decay curve diagram：


    Assembly and Installation：
    Assembly-Electricity

    • DeSCRJPTions：

    Operation and Storage Condition
     Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%
     Input Voltage 85~265V AC, 50/60Hz
    Storage Ambient Temperature -40 to +85°C, Relative Humidity 10~90%
    Mounting Height : Suitable for 5~10m height

    Warning

    Please handle the product with care whenopen the package.
    Do Not Open the Light Engine
    Do Not Soak the Floodlight into Water
    Do Not Light up the System Without Grounding
    Do Not Use Dimmer
     If the new LED down light is found damaged, please keep the originalpackage and contact us.
    In order to ensure the product work properly, please use the powersupply within indicating voltage range.
    Lamps shall be installed and maintained by a qualified electrician.

    • Applications：
    Suitable for the street lightingat highways, urban roads and secondary roads,stadiums, sidewalks, residential areas,industrial areas,squares, parks, schools,villas, gardens and other places.
