品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……进口焊接式高压电动截止阀特点Characteristics of Imported Welded High Pressure Electric Stop Valve

适用介质：水、油、空气等与阀门材质相容的非腐蚀性液体或气体

阀门耐压较高，可手动应急开关

介质流动方向及安装：单向流动(水平安装或出口向上竖直安装)

带手轮执行器(可选)

Applicable medium: water, oil, air and other non corrosive liquids or gases compatible with valve materials

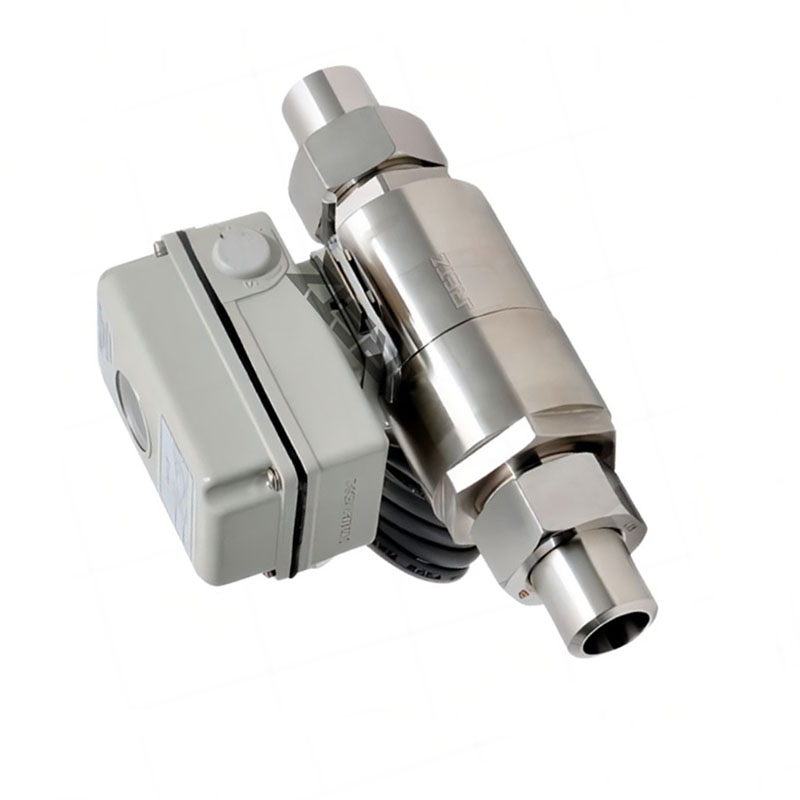

The pressure resistance of the valve is high, and it can be manually opened and closed. Imported welded high-voltage electric stop valve 2.jpg

Medium flow direction and installation: one-way flow (horizontal installation or outlet upward vertical installation) electric stop valve with handwheel actuator (optional)

进口焊接式高压电动截止阀技术参数 Technical Parameters of Imported Welded High Pressure Electric Stop Valve

接口形式：焊接式(可拆卸)

阀体材料：不锈钢 304，连接支架为防腐铝

阀体密封：丁腈橡胶

阀瓣密封：聚氨脂 PU

介质温度：-25℃～+80℃

环境温度：-25℃～+60℃

公称压力：160bar

工作电压：直流 24VDC

开关时间：9 秒(DN15～32)，13 秒(DN40～50)

带手轮执行器(可选)

RETZ流体控制, 完全满足工控系统的截断、安全、疏水、止回、减压、过滤、水力控制、自动化控制

进口焊接式高压电动截止阀通过电机或气动驱动器等控制器进行控制，可以实现远程和自动化控制，适用于大流量、高压力、高粘度等场合的流体控制系统
