产品说明：
太阳能光谱仪 太阳辐射测量光谱仪
概述：
SpectroSolar太阳能辐射光谱仪是高质量、结实耐用、USB供电的光栅光谱仪，化测量脉冲(达到1ms)和连续太阳光模拟器的光谱内容。由于SpectroSolar太阳能辐射光谱仪采用双通道技术，它能够在400nm到1100nm的光谱范围(由IEC国际电工委员会规定的)在1ms之内高精确度(误差低于5%)测量太阳光谱。SpectroSolar太阳能辐射光谱仪对测量太阳闪光灯和描述闪光灯的同步光触(兼具可编程延迟)发特征是理想的。根据国际电工委员会(IEC)规定的等级，SpectroSolar太阳能辐射光谱仪软件把太阳光模拟器分等级。这个太阳能辐射光谱仪的精确性已得到瑞士计量院和国际比较太阳测量会议的确认。SpectroSolar太阳能辐射光谱仪是监测太阳光模拟器的理想工具，因此确保太阳电池制造过程更好的质量保险。
主要特征：
● Optimized for solar simulator measurements
● spectral range from 400 to 1100nm
● 1 ms measurement time
● Optical trigger for flasher
● 2D camera for high sensitivity
● High linearity
● Factory-calibrated for Irradiance measurements
● Irradiance maximum error 5%
● Ranking of solar simulators to the IEC 60904-9 norm
● METAS Certified
● Automatic triggering with pulsed-type solar simulators
● USB powered
● Cost effective
应用：
● Solar simulators
● Photovoltaic applications
● Irradiance measurements
● Light Source characterization
● Process control
● Measurement of continuous or pulsed light sources
● Qualification of solar simulators
规格参数：
Features
SpectroSolar太阳能辐射光谱仪
Spectral range:
400-1100 nm
Spectral resolution
< 5 nm
Wavelength Accuracy
< 0.5nm
Wavelength Reproducibility
< 0.2nm
Wavelength temperature drift
< 0.03nm/oC
Stray light rejection
Radiation acceptance angle
Radiometric Accuracy*
<5%
Detector type
CMOS 2D detector, 752x480 Pixels
Read noise
<0.2 counts RMS (value lower than 1 count due to averaging of 170 detector rows)
Tested spectral match norms
IEC 60904-9 (Ed. 2), JIS C 8912, ASTM E927
IEC 60904-3 AM1.5 (50nm classes)
Dynamic range
5000:1
Dark rate
0.1 counts/ms
Non-linearity
<1% of full scale
Exposure time range
0.1ms to 2000ms
Trigger input
Photo-cell or via 9-pin Micro D
Programmable trigger delay
0 to 2000ms in steps of 0.1ms
Software interface
WINOOWs XP / 7
Operating voltage
5V (USB powered)
Communication interface
USB
Product Dimensions (including electronics)
175 x 125 x 52 mm
Product Weight
1800g
Operating Temperature
10-40°C
(100mm slit, other slit size on request)
Broadband
Narrowband
-27dB
-35dB
Relative irradiance diffuser option
Absolute irradiance diffuser option
10°
180°
Global shutter, 10 Bits ADC
09
07
2021

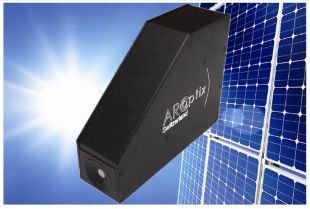

SpectroSolar太阳能辐射光谱仪
