LCCA-20K详细介绍

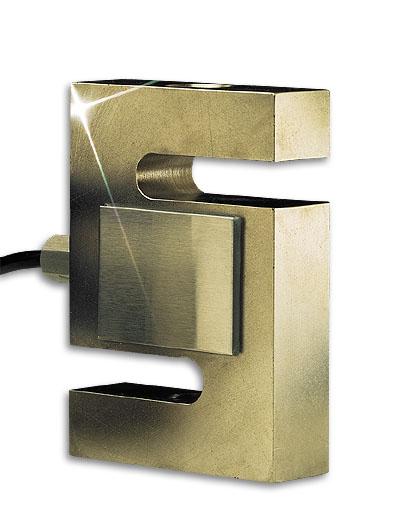

LCCA-20K

高精度"S"梁称重传感器
LCCA
高精度"S"梁称重传感器
环境保护 冲洗应用
耐腐蚀
校准证书提供
0.25%互换

规格
Rated Output: 3mV/V ±0.0075mV/V actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Accuracy: 0.037% Full Scale
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: 0 to 150°F
Compensated Temperature: 0 to 150°F
Thermal effects: Zero - 0.0015% FS/°F Span - 0.0008% RDG/°F
Maximum Load: Safe, 150%; Ultimate, 300%
Bridge Resistance: 350 Ohms nominal
Full Scale Deflection: 0.010 in to 0.020 in
Construction: Nickel Plated Carbon Steel
Cable: 20 ft 4-conductor shielded 22-gage wire

产品型号/产品描述

LCCA-25 S型称重传感器 25 lb capacity

LCCA-50 S型称重传感器 50 lb capacity

LCCA-100 S型称重传感器 100 lb capacity

LCCA-150 S型称重传感器 150 lb capacity

LCCA-200 S型称重传感器 200 lb capacity

LCCA-250 S型称重传感器 250 lb capacity

LCCA-500 S型称重传感器 500 lb capacity

LCCA-750 S型称重传感器 750 lb capacity

LCCA-1K S型称重传感器 1,000 lb capacity

LCCA-2K S型称重传感器 2,000 lb capacity

LCCA-3K S型称重传感器 3,000 lb capacity

LCCA-5K S型称重传感器 5,000 lb capacity

LCCA-10K S型称重传感器 10,000 lb capacity

LCCA-15K S型称重传感器 15,000 lb capacity

LCCA-20K S型称重传感器 20,000 lb capacity
