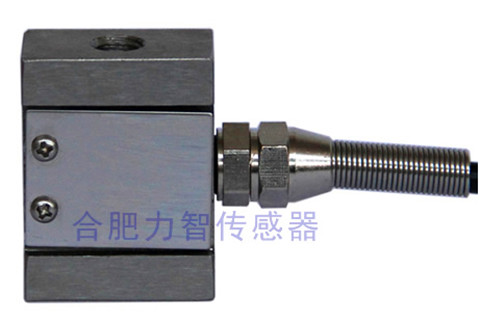

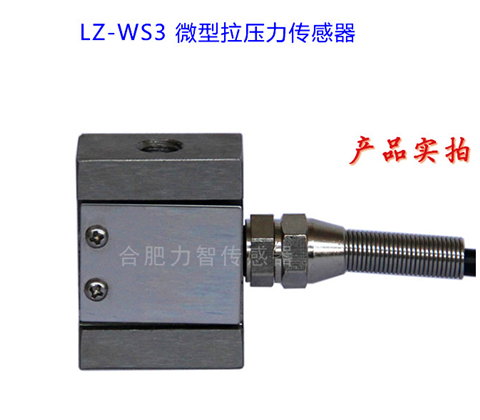

承受拉、压力均可，输出对称性好。精度高、结构紧凑，规格齐全。适用于配料秤、机电结合秤、吊钩秤、包装秤及其它力值的测量与控制。适用与一些要求精度高的工业称量系统。
Rated load
额定载荷
10-300KG
sensitivity
灵敏度
1.0-2.0mv/v
Optional transmit
变送输出
0-5V 、0-10V、 4-20MA、RS485/232
Zero Balance
零点平衡
±1% of rated output
Creep after 30 minutes
蠕变
±0.3% of rated output
Nonlinearity
非线性
±0.3% of rated output
Repeatability
重复性
±0.2% of rated output
Temp. effect on output
灵敏度温漂
≤0.02% of applied output/oC
Temp. effect on zero
零点温漂
≤0.02% of applied output/oC
Safe Temp. Range
可用温度范围
-20oC to + 60oC
Temp. Compensated
温度补偿范围
-10oC to + 40oC
Safe Overload
安全载荷
120%
limit load
极限载荷
150%
Input Impedance
输入阻抗
380 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
上限激励电压
15V DC/AC
Frequency response
响应频率
≤20KHZ
