LCM101-1.5K详细介绍

LCM101-1.5K

压力、应力和重力 ? 称重传感器，力传感器和扭力传感器 ? 罐式称重传感器 ? LCM1001 and LCM1011 Series

lcm1001和lcm1011系列
0.25%可用于多个负载单元的应用程序
5 NIST校准与59欧姆分流校准数据提供

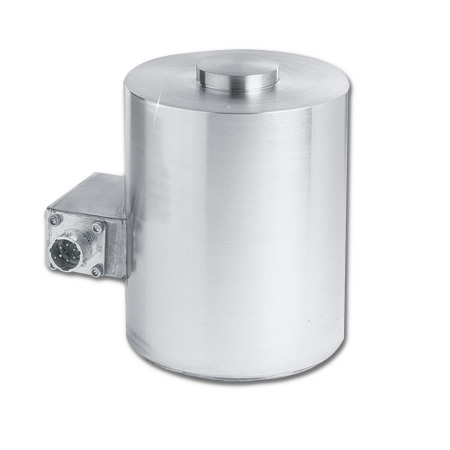

筒体设计理想的轴向压缩应用
恶劣环境的重型环境密封的情况

产品描述
的lcm1001和lcm1011标准配置，用以0-2000000磅范围0-500。

规格
Excitation: 10 Vdc (15 Vdc max)
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0% calibrated to full scale up to 300,000 lb; load cells over 300,000 lb calibrated at 300,000 lb. For a full scale calibration over 300,000 lb, specify option "-FS" after model number (consult Sales for price and delivery)
Protection Class: IP67
Linearity: ±0.05% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FS
Operating Temp Range: -46 to 100°C (-50 to 212°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0018% FS/°C
Span: ±0.0018% rdg/°C
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of rated capacity
Input Resistance: 350 ± 10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.18 to 0.50 mm (0.007 to 0.020") typical
Construction:17-4 PH stainless steel
Electrical:
LC1001/LCM1001: 4.8 m (15') 4-conductor shielded PVC cable
LC1011/LCM1011: PTIH-10-6P (or equiv.)
Mating Connector: PT06F10-6S, sold separately

产品编号 产品描述

CABLE STYLE

LCM1001-250 0-250 kgf cable style cannister load cell

LCM1001-500 0-500 kgf cable style cannister load cell

LCM1001-1K 0-1,000 kgf cable style cannister load cell

LCM1001-2K 0-2,000 kgf cable style cannister load cell

LCM1001-5K 0-5,000 kgf cable style cannister load cell

LCM1001-10K 0-10,000 kgf cable style cannister load cell



CONNECTOR STYLE

LCM1011-250 0-250 kgf connector style cannister load cell (mating connector sold separately)

LCM1011-500 0-500 kgf connector style cannister load cell (mating connector sold separately)

LCM1011-1K 0-1,000 kgf connector style cannister load cell (mating connector sold separately)

LCM1011-2K 0-2,000 kgf connector style cannister load cell (mating connector sold separately)

LCM1011-5K 0-5,000 kgf connector style cannister load cell (mating connector sold separately)

LCM1011-10K 0-10,000 kgf connector style cannister load cell (mating connector sold separately)

ACCESSORIES

PT06F10-6S Mating connectors for LCM1011 units

LCM1000-BP4 Accessory base plate for LCM1001/LCM1011

LCM1000-TP4 Accessory top plate for LCM1001/LCM1011

=======
