LCJA-2.5K详细介绍

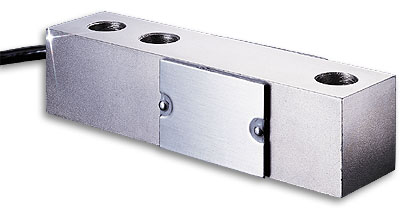

LCJA-2.5K

坚固耐用型剪切梁称重传感器
LCJA系列
坚固耐用型剪切梁称重传感器
环境等级IP67
耐腐蚀
提供校准证书
0.25% Interchangeable

Exact Full Scale Output Stated for Easy Equipment Setup and System Calibration

规格：
Rated Output: 3 mV/V ±0.0075 mV/V (actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Accuracy: ±0.037% Full Scale
Linearity: ±0.03% FS
Hysteresis: ±0.02% FS
Repeatability: ±0.01% FS
Zero Balance: ±1% FS
Creep In 20 min: ±0.03% FS
Operating Temperature: 0 to 150°F (-18 to 66°C)
Compensated Temperature: 0 to 150°F (-18 to 66°C)
Thermal effects: Zero - 0.0015% FS/°F Span - 0.0008% RDG/°F
Maximum Load: 200% FS
Side Load Rejection: 500:1
Bridge Resistance: 350 Ohms nominal
Full Scale Deflection: 0.015 in to 0.025 in
Construction: Nickel Plated Steel
Cable: 20 ft 4-conductor shielded 22-gage wire

产品型号/产品描述

LCJA-500 坚固耐用型剪切梁称重传感器, 0-500 lb capacity

LCJA-1K 坚固耐用型剪切梁称重传感器, 0-1,000 lb capacity

LCJA-2K 坚固耐用型剪切梁称重传感器, 0-2,000 lb capacity

LCJA-2.5K 坚固耐用型剪切梁称重传感器, 0-2,500 lb capacity

LCJA-4K 坚固耐用型剪切梁称重传感器, 0-4,000 lb capacity

LCJA-5K 坚固耐用型剪切梁称重传感器, 0-5,000 lb capacity

LCJA-10K 坚固耐用型剪切梁称重传感器, 0-10,000 lb capacity

LCJA-15K 坚固耐用型剪切梁称重传感器, 0-15,000 lb capacity

LCJA-20K 坚固耐用型剪切梁称重传感器, 0-20,000 lb capacity

LCJA-2.5K
