LCCE-750详细介绍

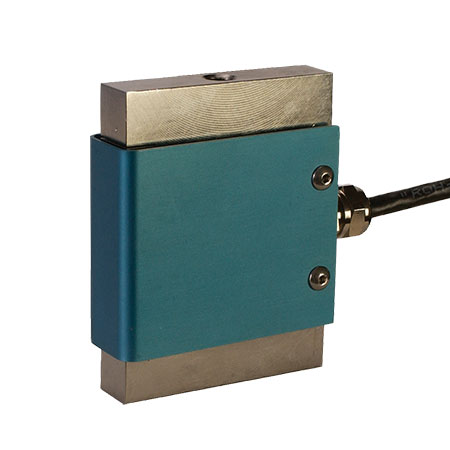

LCCE-750

S梁称重传感器，带高过载保护
LCCE系列
新产品!
S梁称重传感器，带高过载保护
500%个全规模的过载保护
高线性度0.03%
非常低的热漂移
5点NIST可追踪校准包括
0.25%多个负载电池应用 互换性
坚固耐用的不锈钢元素在所有范围

它的称重传感器的设计与机械过载保护500% FS在拉伸和压缩。这种独特的设计给你额外的保护功能，通常是在大多数称重传感器的额外成本的选择。过载时，称重传感器是由一个独特设计的保护锁。当过载，负荷单元解锁并返回到正常的功能。不锈钢传感元件，使得这一称重传感器，一种耐用的型号。

规格：
Excitation: 10 Vdc, 15V maximum
Output: 3 mV/V ± 0.25% full scale
Calibration: 5 point NIST traceable
In tension at 0%, 50%, 100%, 50%, 0%
Linearity: ± 0.03% full scale
Hysteresis: ± 0.02% full scale
Repeatability: ± 0.01% full scale
Zero Balance: ± 1% full scale
Creep in 20 minutes: ± 0.03% full scale
Operating Temperature: -18 to 65°C (0 to 150°F)
Compensated Temperature: -18 to 65°C (0 to 150°F)
Thermal Effects:
Zero: ± 0.0027% FS/°C
Span: ± 0.0014% rdg/°C
Safe Overload: 500% capacity tension and compression
Ultimate Overload: 500% capacity
Bridge Resistance: 350 Ω nominal
Protection Level: IP67
Material: 17-4 PH SS element, aluminum side cover
Electrical Connection: 6 m (20') 4-conductor 24 AWG jacketed cable

注释: Comes complete with 5-point NIST traceable calibration certificate and 59K shunt data.
