LCUW-6K-100FT

压力、应力和重力 ? 称重传感器，力传感器和扭力传感器 ? 静水压力补偿称重传感器 ? LCUW

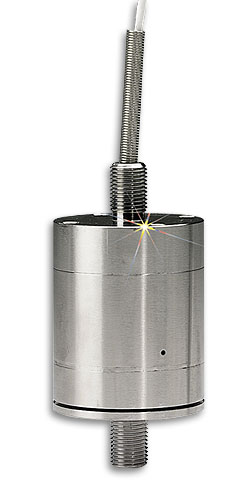

针对水下应用的流体静力称重传感器

lcuw
NIST可溯源校准包括
全不锈钢结构
准确度0.25%
大容量负荷的重型施工

产品描述

的lcuw系列液压补偿负载细胞是一种独特的传感器设计用于操作水下。应用范围包括干船坞、船重、淹没平台和工业称重应用，其中坑坑是常见的。全不锈钢结构，坚固耐用的设计使lcuw精度高，在艰难的环境中的高可靠性传感器埋。
的lcuw度量配置也可用，范围从0-50为0-3000 KGF和公制螺纹。

SPECIFICATIONS
Output: 2 mV/V ± 0.25 % FSO
Excitation: 10 Vdc (15 V Max)
Accuracy: 0.25% FSO Combined Linearity, Hysteresis and Repeatability
Hydrostatic Effect on Zero: ±0.25% FSO per 500 psi (10 K ±0.1% FSO per 100 psi)
Zero Balance: ± 1.0% FSO
Operating Temp. Range: to 93°C (35 to 200°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 350 ±10 Ohms
Output Resistance: 350 ±5 Ohms
Construction: 17-4 PH Stainless Steel
Electrical: 3 ft (0.9 m) 4-conductor TFE wrapped Cable

产品编号 产品描述

LCUW-100 100 lb capacity hydrostatically compensated universal load cell

LCUW-250 250 lb capacity hydrostatically compensated universal load cell

LCUW-500 500 lb capacity hydrostatically compensated universal load cell

LCUW-1K 1,000 lb capacity hydrostatically compensated universal load cell

LCUW-2K 2,000 lb capacity hydrostatically compensated universal load cell

LCUW-6K 6,000 lb capacity hydrostatically compensated universal load cell

================
