LCM711-1K详细介绍

LCM711-1K

压力、应力和重力 ? 称重传感器，力传感器和扭力传感器 ? 张力链接称重传感器 ? LCM701/LCM711 Series
低容量拉杆称重传感器
内螺纹设计

LCM701/LCM711 Series

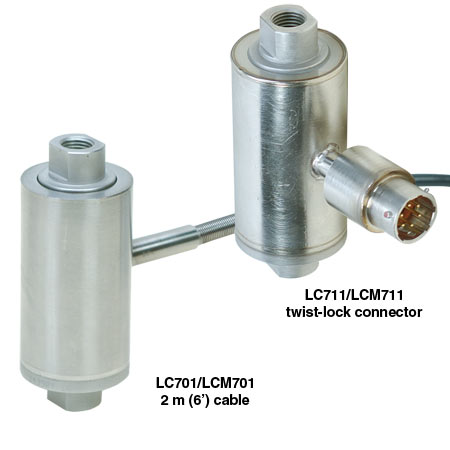

lcm701 ---电缆连接
lcm711 ---整体连接器模型
5点，NIST可溯源校准与59欧姆分流校准数据提供
全不锈钢结构
高线性度
工业应用的坚固耐用的设计

产品描述
The LCM701 models have a 2 m cable with stripped end terminations. The LCM711 models have an integral connector on the body. These stainless steel load cells are ideal for measuring in-line tension forces. Applications include cables, cranes, support rods, engine test beds and industrial weighing.

The LCM701 is also available in standard configurations, with 0-100 to 0-2,000 lb ranges and standard threads. Please see the LC701 for complete details, or contact our Pressure department for more information.


SPECIFICATIONS
Output: 3 mV/V ±0.25% FSO
Excitation: 10 Vdc (15V max)
Linearity:
gt;50 kgf: ±0.10% FSO
≤50 kgf: ±0.20% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp. Range: -46 to 121°C (-50 to 250°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0045% FSO/°C
Span: ±0.007% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Full Scale Deflection: 0.025 to 0.102 mm (0.001 to 0.004")
ProtectionClass: IP65
Construction: Stainless steel
Electrical:
LC701/LCM701: 1.8 m (6') insulated 4-conductor shielded cable
LC711/LCM711: DT02H-10-6P integral connector
Mating connector, LC711/LCM711: PT06F10-6S, sold separately
Weight: 0.45 kg (1 lb)

产品编号 产品描述

Cable Connection Models

LCM701-50 50 kgf Cable style tension link

LCM701-500 500 kgf Cable style tension link

LCM701-1K 1000 kgf Cable style tension link

Integral Connector Models

LCM711-50 50 kgf Connector style tension link

LCM711-500 500 kgf Connector style tension link

LCM711-1K 1000 kgf Connector style tension link


ACCESSORIES

PT06F10-6S Mating connector - sold separately

=========
