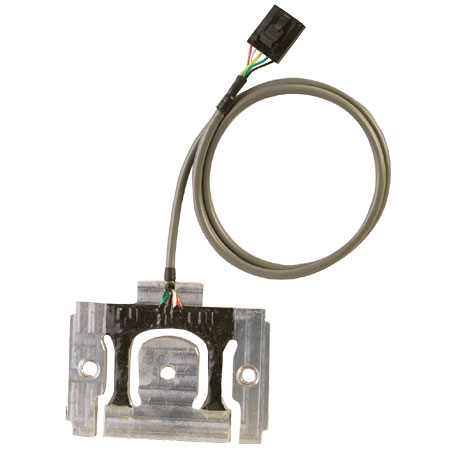

LCPW-7.5详细介绍

LCPW-7.5

平面梁称重传感器
LCPW系列
平面梁称重传感器
全铝结构
低轮廓设计
为OEM应用成本低
环境等级IP67
7.5，15，20，37.5，75和100公斤的范围
符合RoHS

OMEGA’s LCPW Series planar beam load cells are low cost OEM style, commonly used in a variety of weighing applications. They are normally installed in sets of 3 or 4 under a platform in conjunction with a summing network. It’s low profile construction is ideal for scale design where space is limited such as postal scales, airport baggage scales or retail checkout scales.

规格：
Excitation: 5 Vdc, 15 Vdc maximum
Output: 0.9 mV/V ± 0.1%
Linearity: ± 0.02% FS
Hysteresis: ± 0.02% FS
Zero Balance: ± 5% FS
Creep (in 30 Minutes): ± 0.06% FS
Operating Temp Range: -10 to 65°C (14 to 149°F)
Compensated Temp Range: -10 to 40°C (14 to 104°F)
Thermal Effects:
Span: ± 0.04% FS/°C (0.022%/°F)
Zero: ± 0.02% FS/°C (0.011%/°F)
Safe Overload: 300% of capacity
Ultimate Overload: 400% of capacity
Terminal Resistance:
Input: 1180 ± 50 O
Output: 1000 ± 10 O
Construction: Aluminum
Environmental Rating: IP67
Electrical Connection: 457 mm (18"), 4 conductor with Amp# 5-103957-4 connector
Insulation Resistance: gt; 5000M Ω

LCPW-7.5
