LCUC-2.5K详细介绍

LCUC-2.5K

压力、应力和重力 ? 称重传感器，力传感器和扭力传感器 ? 静水压力补偿称重传感器 ? LCUC

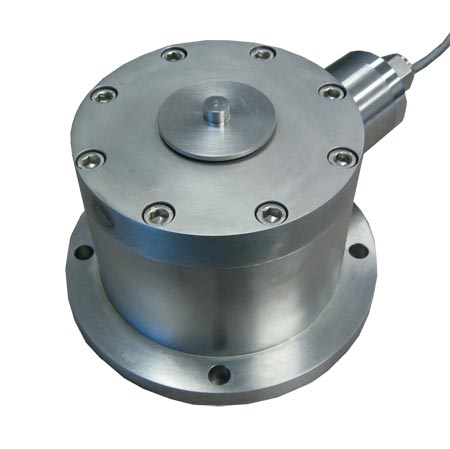

针对水下应用的流体静力称重传感器

LCUC

全不锈钢结构
NIST可溯源校准包括
准确度0.25%
大容量负荷的重型施工
高输出3 /五信号

产品描述
的lcuc系列液压补偿压缩负荷细胞是一种独特的传感器设计用于水中或水下作业。应用范围包括干船坞、船重、淹没平台和工业称重应用，其中坑坑是常见的。全不锈钢结构，坚固耐用的设计给lcuc精度高，在艰难的潜水环境中的高可靠性。

SPECIFICATIONS
Output: 3 mV/V ± 0.25 % FSO
Excitation: 10 Vdc (15 V Max)
Accuracy: ±0.25% FSO Combined Linearity, Hysteresis and Repeatability
Hydrostatic Effect on Zero: ±0.5% FSO per 500 psi
Zero Balance: ±1.0% FSO
Operating Temp. Range: 2 to 107°C (35 to 225°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 300% of Capacity
Ultimate Overload: 300% of Capacity
Input Resistance: 360 Ohms
Output Resistance: 350 ±5 Ohms
Construction: 17-4 PH Stainless Steel
Electrical: 3 ft (0.9 m) 4-conductor, shielded PVC Cable

产品编号 产品描述

LCUC-100 0-100 lb capacity hydrostatically compensated compression load cell

LCUC-250 0-250 lb capacity hydrostatically compensated compression load cell

LCUC-500 0-500 lb capacity hydrostatically compensated compression load cell

LCUC-1K 0-1,000 lb capacity hydrostatically compensated compression load cell

LCUC-2.5K 0-2,500 lb capacity hydrostatically compensated compression load cell

============

LCUC-100
LCUC-250
LCUC-500
LCUC-1K
LCUC-2.5K

LCUC-100
LCUC-1K
LCUC-2.5K
LCUC-250
LCUC-500

LCUC-2.5K
