LCEC-50详细介绍

LCEC-50

梁称重传感器
LCEC
梁称重传感器
Premium Temperature Compensation
0.0008%/°F
Low Profile
Waterproof, Corrosion Resistant
Environmentally Sealed
Calibrated in Compression

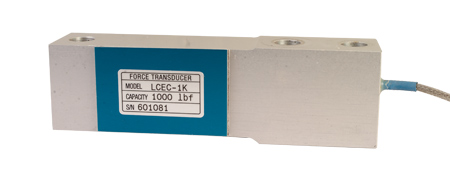

Model LCEC load cells are designed to operate in all weather or wet industrial environments. Their low profile and high side load capability simplify mechanical installation considerations. Their weather sealing, high precision and repeatability make them ideally suited for rugged industrial applications such as testing, batching, weigh pits and other applications exposed to the elements. Supplied with 10 ft (3m) Integral Cable.

规格：
Excitation: 10 Vdc (15V max)
Output: 3 mV/V nominal
Calibration: NIST-traceable
Linearity: ±0.03% FS
Hysteresis: ±0.02% FS
Repeatability: ±0.01% FS
Creep (after 20 min): ±0.03%
Zero Balance: ±1% FS
Operating Temp Range: -55 to 90°C (-65 to 200°F)
Compensated Temp Range: -15 to 65°C (0 to 150°F)
Thermal Effects:
Zero: ±0.0015% rdg/°F max
Span: ±0.0008% FS/°F max
Safe Overload: ±150% of capacity
Ultimate Overload: ±300% of capacity
Input Resistance: 350 Ω +50/-3.5 Ω
Allowable Side Load at Rated Load: 50% rated capacity
Protection Class: IP67
Output Resistance: 350 ±3.5 Ω
Construction: Aluminum
Electrical: 3 m (10') insulated 4-conductor shielded color-coded cable

产品型号/产品描述

LCEC-50 Minibeam load cell with +/- 50 lb capacity

LCEC-100 Minibeam load cell with +/- 100 lb capacity

LCEC-250 Minibeam load cell with +/- 250 lb capacity

LCEC-500 Minibeam load cell with +/- 500 lb capacity

LCEC-1K Minibeam load cell with +/- 1,000 lb capacity

注释: NIST Traceable Calibration Included
