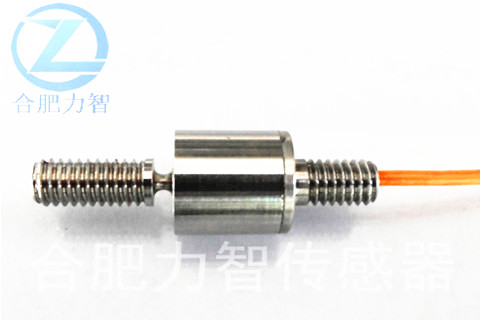

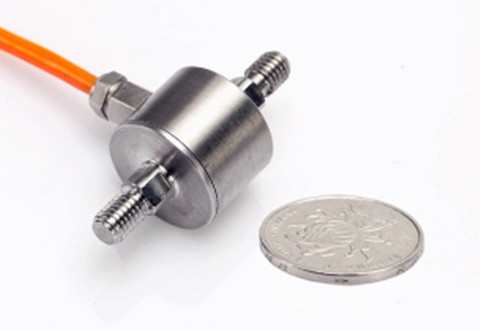

LZ-WXL3为拉压结构，全不锈钢材质；具有温度特性好、抗过载能力强、工作稳定等特点。 可选配0-5V/0-10V/4-20mA变送器，可选配四位显示仪表，五位显示控制仪表，手持仪表，可选RS485/232通讯.
Rated load
额定载荷
1-20KG
sensitivity
灵敏度
1.0-2.0mv/v
Optional transmit
变送输出（选配）
0-5V 、0-10V、 4-20mA、RS485/232
Zero Balance
零点平衡
±1% of rated output
Creep after 30 minutes
蠕变
±0.3% of rated output
Nonlinearity
非线性
±0.3% of rated output
Repeatability
重复性
±0.2% of rated output
Temp. effect on output
灵敏度温漂
≤0.02% of applied output/oC
Temp. effect on zero
零点温漂
≤0.02% of applied output/oC
Safe Temp. Range
可用温度范围
-20oC to + 60oC
Temp. Compensated
温度补偿范围
-10oC to + 40oC
Safe Overload
安全载荷
120%
limit load
极限载荷
150%
Input Impedance
输入阻抗
380 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Rated Excitation
推荐激励电压
5-10V
Frequency response
响应频率
≤20KHZ
