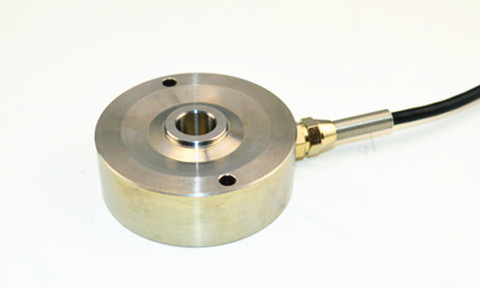

压式结构，全不锈钢材质；具有温度特性好、抗过载能力强、工作稳定等特点；可选择变送器，标准信号 0～10mA、4～20mA或0～5V、0-10V输出或选配RS485/232 MODBUS协议通讯
Rated load
额定载荷
0.2-5T
sensitivity
灵敏度
1.0-2.0mv/v
Optional transmit
变送输出
0-5V 、0-10V、 4-20mA、RS485/232
Zero Balance
零点平衡
±1% of rated output
Creep after 30 minutes
蠕变
±0.3% of rated output
Nonlinearity
非线性
±0.3% of rated output
Repeatability
重复性
±0.2% of rated output
Temp. effect on output
灵敏度温漂
≤0.02% of applied output/oC
Temp. effect on zero
零点温漂
≤0.02% of applied output/oC
Safe Temp. Range
可用温度范围
-20oC to + 60oC
Temp. Compensated
温度补偿范围
-10oC to + 40oC
Safe Overload
安全载荷
120%
limit load
极限载荷
150%
Input Impedance
输入阻抗
380 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
最大激励电压
15V DC/AC
Frequency response
响应频率
≤20KHZ
SCHEMATIC 连接方式
Red: +input 红色：+激励
Green: +output 绿色：+信号
Black: -input 黑色：-激励
White: -output 白色： -信号
