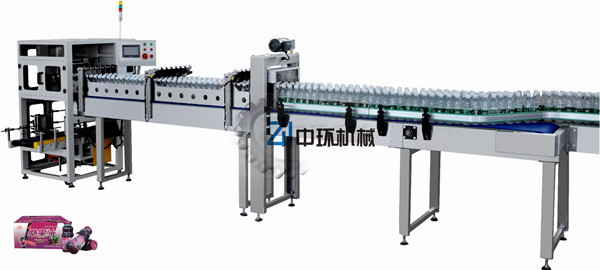

GPF-20D自动装箱机

Automatic case packer

GPF-20D自动装箱机的装箱方式为落差式装箱，专为瓶类产品自动装箱设计，机器快速、稳定、简单，兼容性强适合不同规格不同排列产品使用，更换产品只需简单更换模具即可。广泛使用于矿泉水、饮料、调味品、清洁剂、润滑油等产品自动化包装。

GPF-20D Automatic Drop-type Case Packer, specially designed for automatic bottling solution. The machine has a simple structure, and with high speed and stability, it suits for different sizes of bottles and different configurations after exchanging a few components.It has been widely used for packing products such as drinking water, beverage, condiment, detergent, and lube, etc.

技术参数Specifications:

型号MODEL: GPF-20D

电源POWER SUPPLY:380V 50HZ

功率POWER:3.5KW

装箱速度PACKING SPEED: 20CTN/MIN

纸箱规格PACKING SIZE: L200-450*W200-400*H150-450MM

机器尺寸MACHINE DIMENSION: L1300*W900*H1600mm( the infeed & accumulation conveyorsare not included)

包装材料PACKING MATERIAL: CORRUGATED CARTONS

进料台面高度INFEED CONVEYOR HEIGHT: 1000mm

出料台面高度OUTFEED CONVEYOR HEIGHT: 500mm
