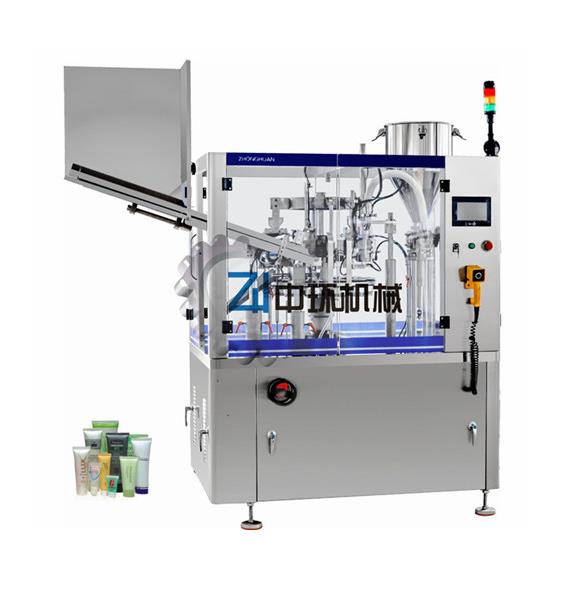

ZHF-100YC全自动软管灌装封尾机

Tube filling & sealing machine

多色灌装 Multi-color filling

特种管灌装 Special tube filling

异型封尾 Special-shaped sealing

主要特点:

该机结构紧凑、自动上管、传动部分全封闭。

该机由全自动操作系统完成供管、洗管、识标、灌装、热溶、封尾、打码、修整、出成品全过程。

由气动方式完成供管、洗管，动作准确可靠。

Compact design and auto tube feed. Driving part fully-closed.

Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

Tube washing and feeding conducted pneumatically, accurate and reliable.

技术参数Technical Parameters

充填容量Filling volume: 1-400ml/unit (Adjustable)

充填误差Filling accuracy: ≦±0.5﹪

生产能力Capacity: 4000-4800unit/hour, Adjustable

软管直径Tube diameter: Φ10-60 mm

软管高度Tube length: 50-240mm

料桶容积Hopper volume: 40L

工作电压Power: 380V/220V (Optional)

工作气压Air pressure: 0.4-0.6 MPa

机器功率Machine power: 9kw
