产品描述：

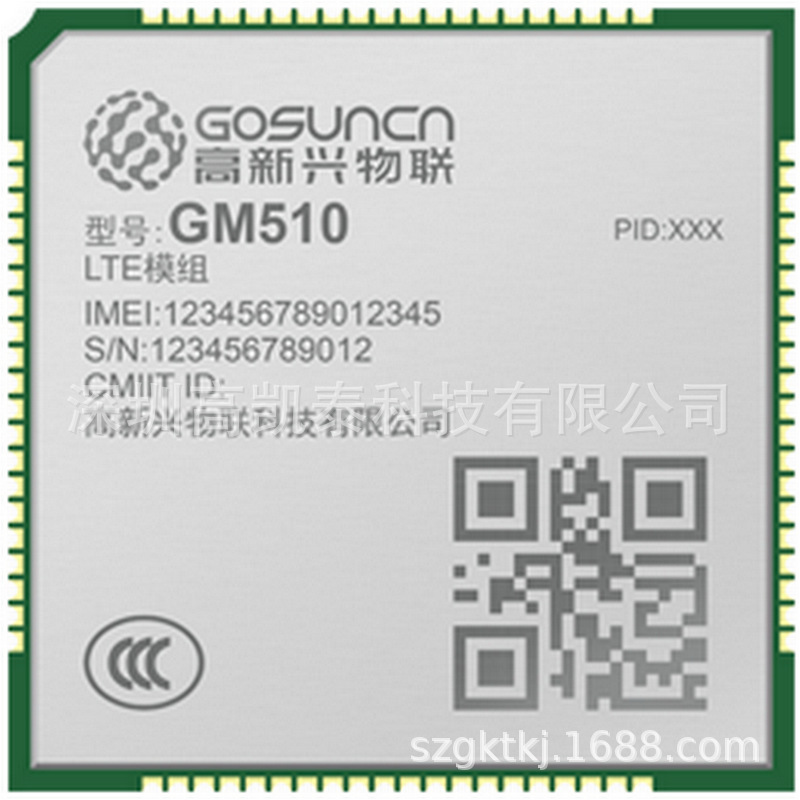

GM510是基于LTE制式的移动网络通讯模组，支持LTE-FDD及LTE-TDD制式并支持LTE Cat.4。在LTE制式下，该模组可以提供最大50Mbps上行速率和150Mbps下行速率。该模组支持多种网络协议（PAP、CHAP、PPP）和多种功能（FOTA, Remote wakeup等），并能提供USB，UART，SDIO，I2C，SPI等硬件接口。该模组支持宽温工作，可广泛应用于移动宽带，公网对讲，无线支付，车载，安防监控、智能物流、智慧工业等多种物联网应用场景。

产品亮点：

LCC Form Factor
LTE FDD & LTE TDD
LTE FDD: UL 50Mbps
Pin-to-Pin with ME3630
Embedded TCP/UDP
Support TD-LTE 1.8GHz
FOTA
4-wires UART
RAS /ECM/RNDIS
-40℃ ~ 85 ℃
Auto suspend & remote wakeup
USB 2.0



基本属性

* LCC Form Factor (80 pins)

* Pin-to-Pin with ME3630

* Dimensions: 30mm × 30mm× 2.3mm

* Frequency Band :

-LTE FDD/LTE TDD

-WCDMA*

-GSM *



电气及灵敏度

* Transmit Power:

--LTE: 23 ±2.7dBm (Power Class 3)

--WCDMA: 24 +1/-3dBm (Power Class 3)

--GSM900 : 33±2dBm (Power Class 4)

--GSM1800: 30±2dBm (Power Class 1)

* Receiving sensitivity:

--Rx Diversity *

* Power Supply :

--3.4V -- 4.2V(3.8V is recommended)



环境适应性

* Operation temperature: -30°C to +75°C

--Extreme Operating temperature: -40°C to +85°C

* Storage temperature: -40°C to +85°C

* Humidity: 5%~ 95%



频段信息：

* C1AS

1.LTE FDD: B1,B3,B5,B8

2.LTE TDD: B34,B38,B39,B40,B41

3.WCDMA: B1,B8

4.GSM: B3,B8

* F2B

1.LTE FDD: B1,B3,B5,B8

2.LTE TDD: B34,B38,B39,B40,B41,B62

3.WCDMA: B1,B8

4.GSM: B3,B8



数据特性

* LTE FDD

-Uplink 50Mbps / Downlink 150 Mbps

* LTE FDD

--Uplink30Mbps / Downlink 112Mbps

* WCDMA

--Uplink30Mbps / Downlink 112Mbps

* EDGE (Multi-slot Class 12)

--Uplink 236.8 kbps / Downlink 236.8 kbps

* GPRS (Multi-slot Class 10)



模块接口

* USB 2.0 High speed (480 Mbps)

* UART1(4-wires)

* UART2 for debug (2-wires)

* SIM interface (1.8/3.0V)

* SPI

* I2C

* Antenna (RF PAD for Primary, Diversity)

* LED indication

* Reset & Power-on

* WAKEUP-IN & WAKEUP-OUT



应用功能

* Support embedded TCP & UDP protocols

* Support protocols PAP and CHAP used for PPP connection

* USB Selective Suspend & Remote wakeup

* RAS /ECM/RNDIS

* Control Via AT Commands according to 3GPP TS27.005, 27.007 and GOSUNCN extended AT commands



驱动&工具

* Drivers

--WINOOWs XP, Vista, 7 , 8, 10

--Linux

--Android

* Diag-log Tool

* Firmware Update Tool
