耐紋波SH系列105℃鋁電解電容器
品牌：GD電容

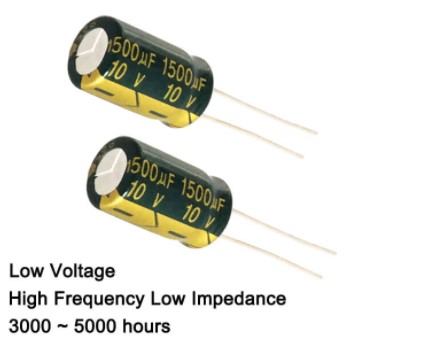

型號：1500uf10v
耐溫：105度
體積：13*25（直徑*高度）
系列：SH(HT)
腳距：5.0mm
包裝：500pcs/包
一般尺寸型品,適用於各式小型化電子產品i高信賴性的產品壽命保証2,000小時/105℃
i Designed in high CV value with smaller size and is suitable for consumer electronics products use. iLife Guaranteed 2,000 hours/105℃iSpecifications
iDimensions – SH Series
SH(CD110)直立式 Radial 105°C Seriesi
Item
Performance Characteristics
Operating Temperature range使用溫度範圍
-40 +105 C
-25 +105 C
Rated Voltage額定電壓
6.3V ~ 100V
160V ~ 450V
Capacitance Range容量範圍
0.1 F ~ 22000 F
Capacitance Tolerance靜電容量容許差
+-20% (120Hz, 20 C)
Leakage Current洩漏電流
I《 0.01CV or 4 A, whichever is greater after 3 minutes application of rated voltage
I《 0.03CV + 10 Amax., whichever is greater after 3 minutes application of rated voltage
Dissipation Factor散逸因數 (120Hz, 20 C)
Rated Voltage
6.3
10
16
25
35
50
63
100
160~350
400~450
tan d (Max.)
0.24
0.20
0.17
0.14
0.12
0.10
0.10
0.10
0.10
010
For capacitance of more than 1,000 uF, add 0.02 for every increase of 1,000 uF
Temperature Characteristics低溫溫度特性 (120Hz)
Impedance Ratio (120Hz)
Rated Voltage
6.3
10
16
25
35
50~100
160~200
250
350~400
450
Z(-25°C)/Z(20°C)
4
3
2
2
2
2
3
3
3
5
Z(-40°C)/Z(20°C)
10
8
6
4
3
3
-
-
-
-
Load Life高溫負荷特性
After 2,000 hours application of rated voltage at 105°C, capacitors meet the characteristics requirements mentioned below
Capacitance Change
within 20% of initial value
tan d
200% or less of initial specified value
Leakage Current
Initial specified value or less
Shelf Life擱置壽命
After leaving Capacitors under no load at 105°C for 1,000 hours and applying voltage according to JIS C-5102 4-3, they meet the specified value for load life characteristics listed above
03
17
2026
耐紋波SH系列105℃鋁電解電容器 高频低阻电解电容 矮胖型电解电容 耐高温低阻抗电容
来源:[华凯电容（深圳）有限公司]
联系人：林先生
手机：15817353058
电话：0755-84006779
传真：0755-84698112
QQ：554350527
Email：agl100@163.com
地址：广东省深圳市深圳市龙岗区平湖街道新木路254号
品牌：GD铝电解电容器
价格：面议
元/pcs
供应地：广东省深圳市
产品型号：1500uf10v
