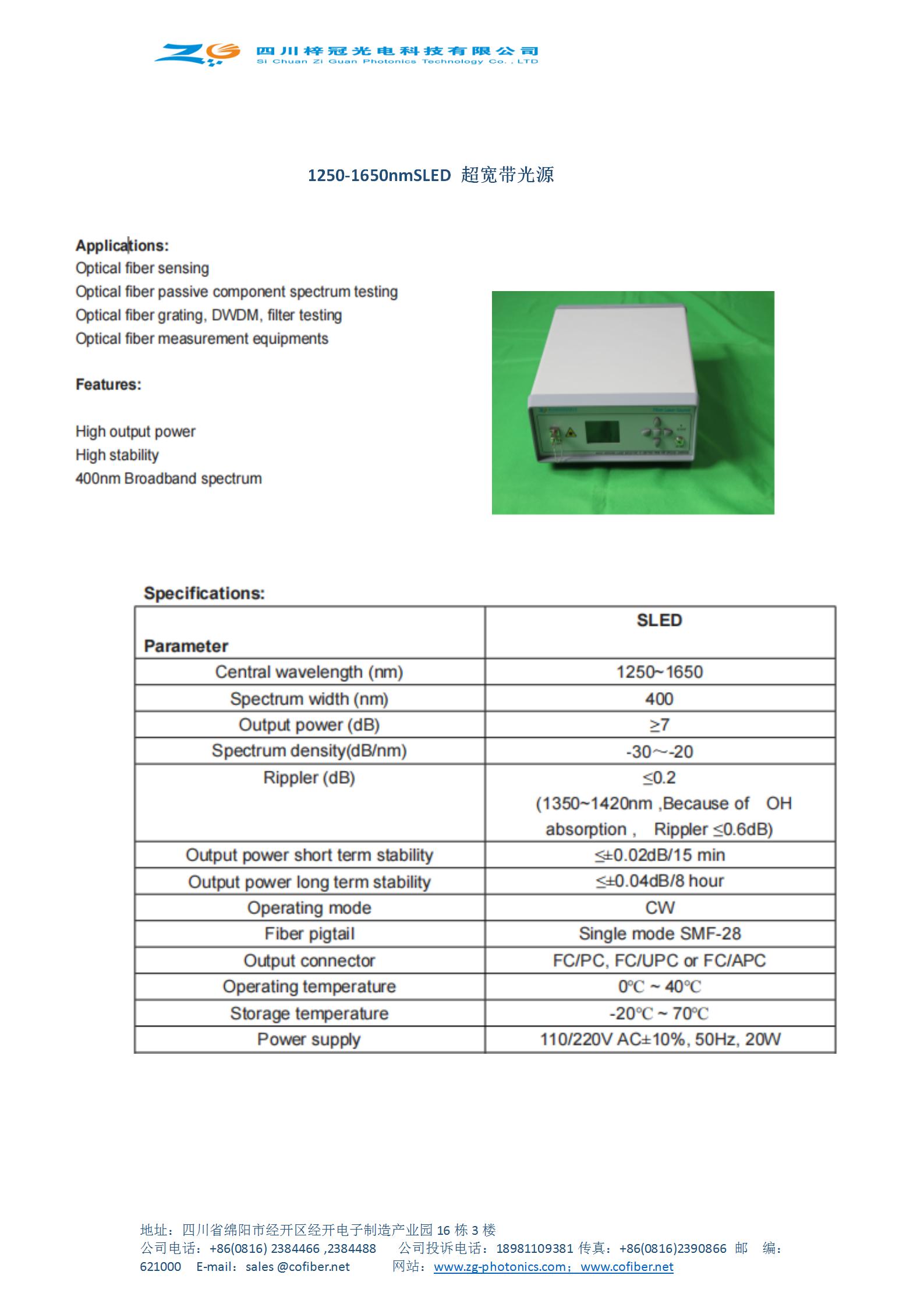

Parameter

SLED

Central wavelength(nm)

1250 -~1650

Spectrum width(nm)

400

Output power(dB

≥7

Spectrum density(dB/nm)

- 30~-20

Ripple r(dB)

≤0.2

（1350~1420nm， Because of

OH absorption， Ripple r≤0.6dB)

Output power short terms t ablity

≤±0.02dB/15min

Output power longterm stabi ity

≤±0.04dB/8hour

Operating mode

CW

Fiber pigtail

Modeling SMF-28

Output connector

FC/PC， FC/UP Co rFC/APC

Operating temperature

0℃~40℃

Storage temperature

-20℃~70℃

Powersupply

110/220VAC±10%， 50Hz， 20W
