ITEM

SPECIFICATIONS

01

Type

Dynamic speaker

02

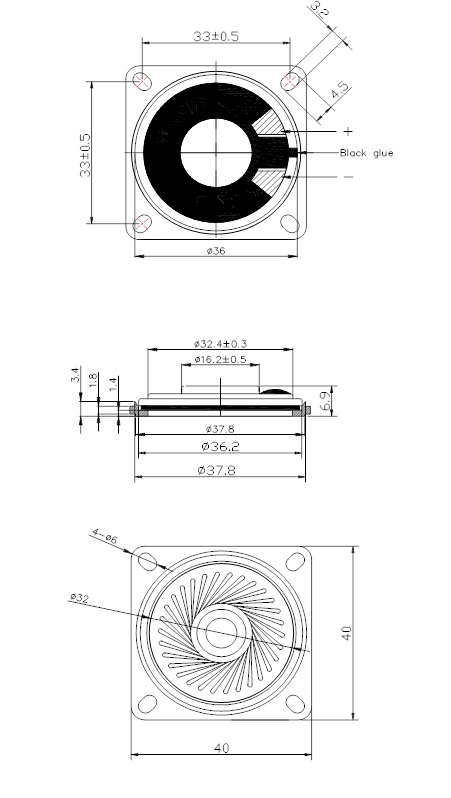

Dimension

External diameter 36mm

03

Rated Input Power

0.5W

04

Max. Input Power

0.7W for 1 minute

05

Impedance

50 ohm ± 15% at 1000Hz.

06

Resonance Frequency (Fo)

450Hz ± 20% at  Fo, 1V

07

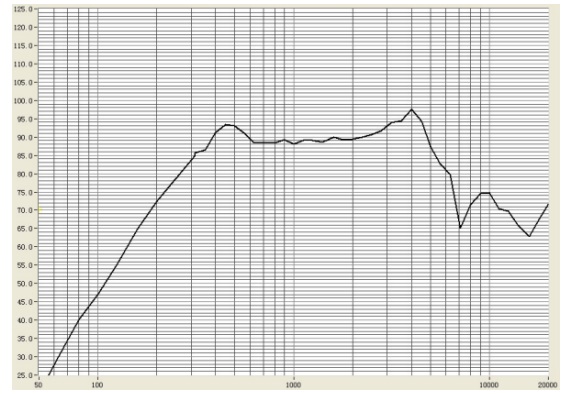

Sensitivity (S.P.L.)

91 dB (0.5W / 0.1m) ± 3 dB

at AVE0.8,1.0,1.2,1.5 KHz

08

Frequency Range

Fo – 5KHz

09

Total Harmonics Distortion

Max 8 % at 1 KHz,0.5W.

10

Voice Coil

Diameter 10.25 mm

11

Magnet

Rare earth permanent (Nd-Fe-B) magnet Φ9.7x1.3 mm

12

Weight

10g ± 0.2g

13

Appearance

Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc.

14

Operation Test

Must be normal at program source – 0.5W

15

Buzz, Rattle, etc.

Should not be audible at 5.0V sine Wave between Fo to 5KHz

16

Polarity

When positive voltage is applied to the terminal marked (+), diaphragm should move to the front.

17

Terminal Strength

Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection.

18

Temperature

Operating temperature: -20℃ to +60℃

Storage  temperature: -30℃ to +80℃
