STM32F103VET6 LQFP100 全新进口原装打印机扫描仪可视对讲

当前位置: 首页> 电子元器件> 集成电路> 其他集成电路

来源:[深圳市一恒科创技术有限公司]

联系人：蒋先生

手机：18688997402

电话：0755-29059035

传真：0755-88356101

QQ：1404717720

Email：18688997402@163.com

地址：广东省深圳市深圳市福田区振华路122号海外装饰大厦B座501室

品牌：ST

价格：16.00 元/个

供应地：广东省深圳市

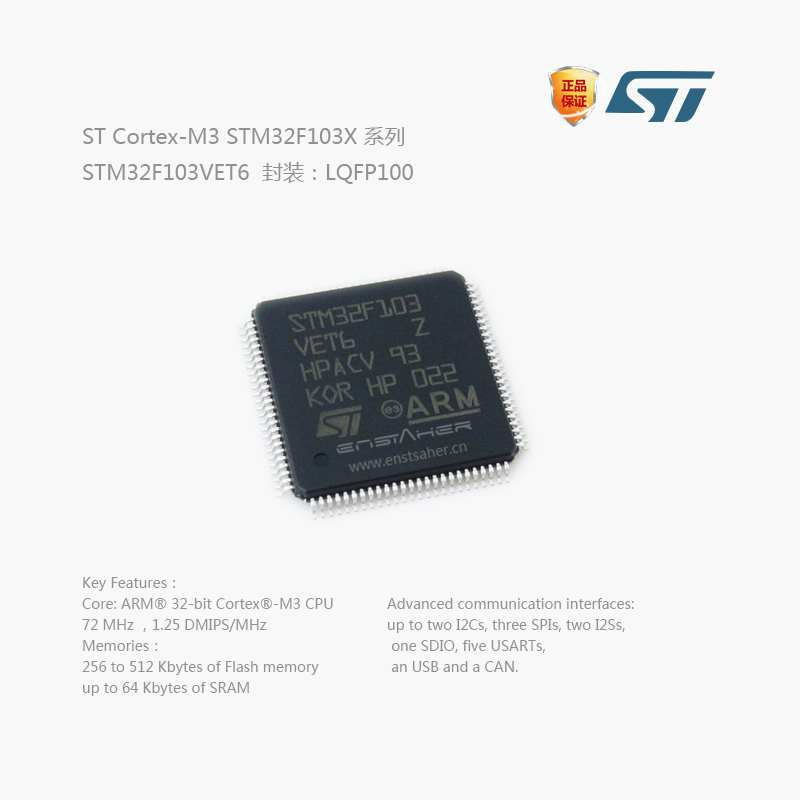

产品型号：STM32F103VET6

Mainstream Performance line, ARM Cortex-M3 MCU with 512 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN

The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance

ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory

up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected

to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers,

as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO,

five USARTs, an USB and a CAN.

The STM32F103xC/D/E high-density performance line family operates in the –40 to +105 °C temperature range,

from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

These features make the STM32F103xC/D/E high-density performance line microcontroller family suitable for a

wide range of applications such as motor drives, application control, medical and handheld equipment, PC and

gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems

video intercom, and HVAC.

Core: ARM® 32-bit Cortex®-M3 CPU
72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
Single-cycle multiplication and hardware division
Memories
256 to 512 Kbytes of Flash memory
up to 64 Kbytes of SRAM
Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
2.0 to 3.6 V application supply and I/Os
POR, PDR, and programmable voltage detector (PVD)
4-to-16 MHz crystal oscillator
Internal 8 MHz factory-trimmed RC
Internal 40 kHz RC with calibration
32 kHz oscillator for RTC with calibration
Low power
Sleep, Stop and Standby modes
VBATsupply for RTC and backup registers
3 × 12-bit, 1 μs A/D converters (up to 21 channels)
Conversion range: 0 to 3.6 V
Triple-sample and hold capability
Temperature sensor
2 × 12-bit D/A converters
DMA: 12-channel DMA controller
Supported peripherals: timers, ADCs, DAC, SDIO, I2Ss, SPIs, I2Cs and USARTs

Debug mode
Serial wire debug (SWD) & JTAG interfaces
Cortex®-M3 Embedded Trace Macrocell?
Up to 112 fast I/O ports
51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Up to 11 timers
Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2 × 16-bit motor control PWM timers with dead-time generation and emergency stop
2 × watchdog timers (Independent and WINOOW)
SysTick timer: a 24-bit downcounter
2 × 16-bit basic timers to drive the DAC
Up to 13 communication interfaces
Up to 2 × I2C interfaces (SMBus/PMBus)
Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
Up to 3 SPIs (18 Mbit/s), 2 with I2S interface multiplexed
CAN interface (2.0B Active)
USB 2.0 full speed interface
SDIO interface
CRC calculation unit, 96-bit unique ID
ECOPACK®packages
