CSTCE16M0V53C-R0陶瓷振荡子由日本村田MURATA品牌生产.

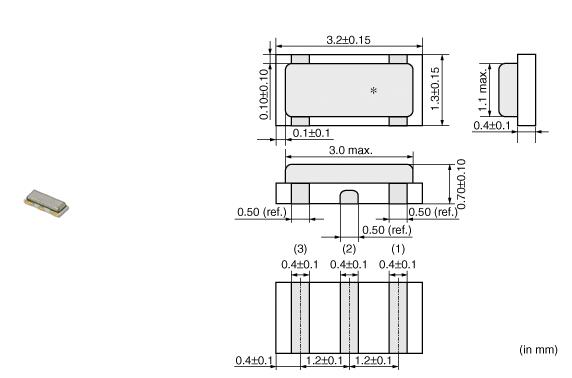

贴片型.3脚引线.频率16.00MHz.体积3.2*1.3*0.9mm.
CSTCE16M0V53C-R0振荡子产品本身是陶瓷体.但在产品外面有一铁壳保护.减少外力对陶瓷本体的冲击.性能更稳定.
MURATA's frequency adjustment and package technology expertise has enabled the development of the chip
动力传动/安全
汽车级
-R0
180mm压纹带
3000
规格
形状
SMD
频率
16.000MHz
频率公差
±0.5%
工作温度范围
-40℃ to 125℃
频率温度特性
±0.15%
频率老化
±0.1%
清洗
avairable
谐振阻抗
40Ω
内置负载电容
15pF
CERALOCK(R) with built-in load capacitors. This diverse series owes its development to MURATA's original mass production techniques and high reliability, and has achieved importance in the worldwide automotive market.
Features
1. The series has high reliability and is available for a wide temperature range.
2. Oscillation circuits do not require external load capacitors.
3. The series is available in a wide frequency range.
4. The resonators are extremely small and have a low profile.
5. No adjustment is necessary for oscillation circuits.
汽车用途
其他用途
包装
规格
最小订购单位
03
12
2018
CSTCE16M0V53C-R0 村田振荡子 村田陶瓷振荡子
来源:[深圳奥纳科技有限公司]
联系人：朱先生
手机：13632701009
电话：0755-85293010
传真：0755-85292925
QQ：1084623702
Email：zb@awnatech.com
地址：广东省深圳市深圳市龙华新区民治大道牛栏前大厦C618
品牌：MURATA
价格：面议
元/PCS
供应地：广东省深圳市
产品型号：CSTCE16M0V53C-R0
