· SPECIFICATIONS
Specifications
Accuracy
Rated
capacity(R.C.)
2kg, 5kg,
10kgf, 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf
Rated output(R.O.)
2.0mV/V±1%(2kgf,
5kgf:1.5mV/V±1%)
Nonlinearity
0.03% of
R.O.
Hysteresis
0.03% of
R.O.
Repeatability
0.03% of
R.O.
Zero
balance
±2% of R.O.
Temperature
effect, on rated output
0.05% of
LOAD/10℃
Temperature
effect, on zero balance
0.1% of R.O./10℃
Temperature
range, compensated
-10~60℃
Temperature
range, safe
-20~80℃
Terminal
resistance input
350 ±50Ω
Terminal
resistance output
350 ±2Ω
Insulation
resistance bridge/case
2000MΩ
Excitation
recommended
10V
Safe
overload
150% R.C
Cable length
Φ5mm
4core,3m

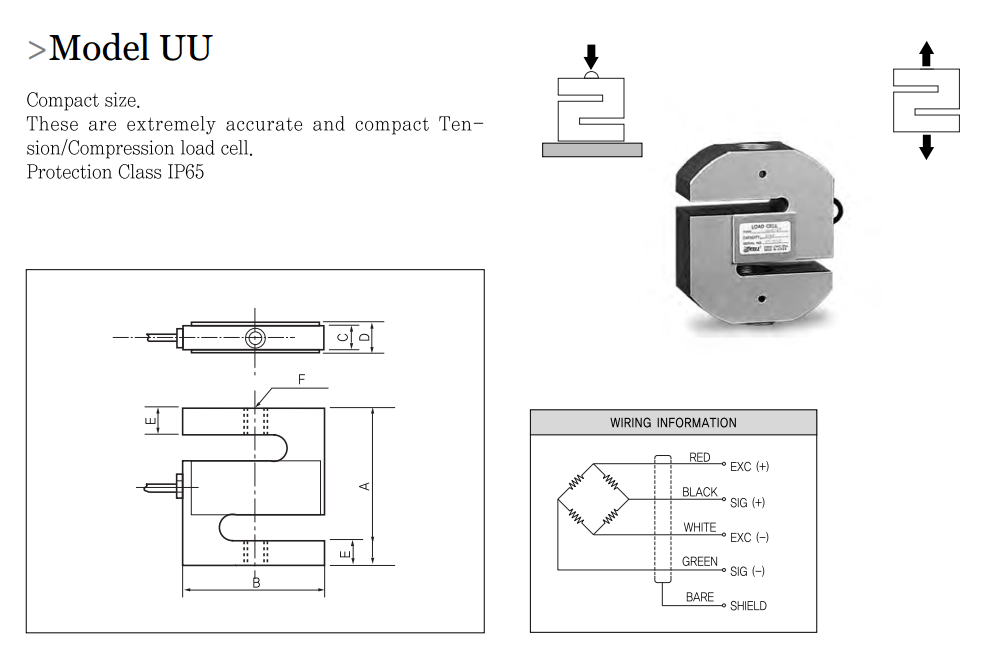

· DIMENSIONS TABLE
Capacity
A
B
C
D
E
G
Weight(kg)
2kgf
(19.61N)
60
50
13
16
10
M6x1
0.4
5kgf
(49.03N)
60
50
13
16
10
M6x1
10kgf
(98.07N)
70
52
13
18
13
M6x1
20kgf
(196.1N)
70
52
13
18
13
M6x1
50kgf
(490.3N)
70
52
18
24
13
M12x1.75
100kgf
(980.7N)
70
52
18
24
13
M12x1.75
200kgf
(1.961KN)
70
52
18
24
13
M12x1.75
500kgf
(4.903KN)
70
62
22
25
15
M12x1.75
0.8
1tf
(9.807KN)
70
62
22
25
15
M12x1.75
2tf
(19.61KN)
96
84
30
35
21
M20x1.5
2
3tf
(29.42KN)
120
96
35
41
30
M24x2
3
5tf
(49.03KN)
120
96
40
44
30
M24x2
10tf
(98.07KN)
165
140
60
66
46
M39x2
8.5
06
17
2024
韩国DACELL大镎S型传感器UU/200kgf 大镎传感器UU
来源:[上海祁力仪器仪表有限公司]
联系人：张先生
手机：13482340802
电话：021-59502897(801)
传真：021-59502897(806)
QQ：40114712
Email：40114712@qq.com
地址：上海上海市浦东新区浦东新区川环路
品牌：DACELL
价格：面议
元/台
供应地：上海上海市
产品型号：UU/200kgf
