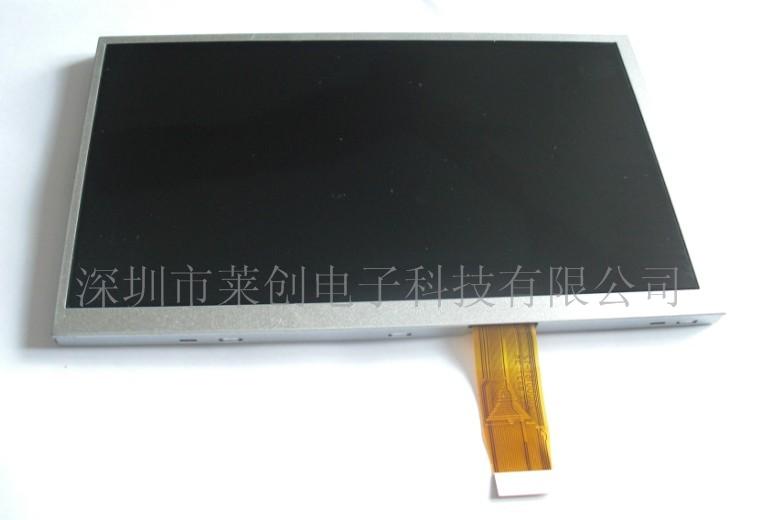

Screen  Size                7"
Module  Size(mm)                164.9  x  100.0  x  5.7
Active  Area(mm)                154.08  x  86.58
Display  Mode                Transmissive
Resolution                480X3(RGB)X234
Viewing  Angle  (Tpy.)θT/θB/θL/θR              40/60/60/60
Viewing  direction                6  O’Clock
NTSC                50%
Aspect  Ratio                  16:9
Luminance(nits)                200
Contrast  Ratio                300
Response  Time(ms)                35
Dot  Pitch(mm)                0.107(W)  X  0.370(H)
PPI  (  Pixel  per  inch  )                74
Power  Consumption  (W)                0.855
Weight  (g)                166
Interface                Analog(26  Pin  FPC)
Light  Source                12LEDs
Operation  Temperature(  ℃)            -30~85
Storage  Temperature  (℃)              -30~85
HTHH.(op)                60℃,90%  RH
Remark                              Low  power  consumption
