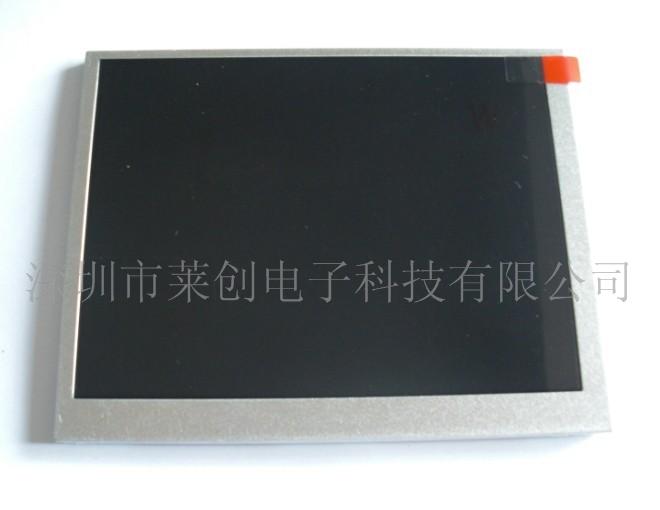

Screen  Size                5.6’’
Module  Size(mm)            126.5  x  100.0  x  5.7
Active  Area(mm)            112.896  x  84.672
Display  Mode                    Transmissive
Resolution                    640X3(RGB)X480
Viewing  Angle  (Tpy.)θT/θB/θL/θR      50/70/70/70
Viewing  direction                6  O’Clock
NTSC                                50%
Aspect  Ratio                  4:3
Luminance(nits)                350
Contrast  Ratio                500
Response  Time(ms)                25
Dot  Pitch(mm)                0.0588(W)  x  0.1764(H)
PPI  (  Pixel  per  inch  )                144
Power  Consumption  (W)                2.56
Weight  (g)                83
Interface                "40pin  FPC,Parallel  18bit  RGB"
Light  Source                18LEDs
Operation  Temperature(  ℃)                -20~70
Storage  Temperature  (℃)              -30~80
HTHH.(op)                40℃,90%  RH
Remark                            TTL  TCB  with  LED  driver
