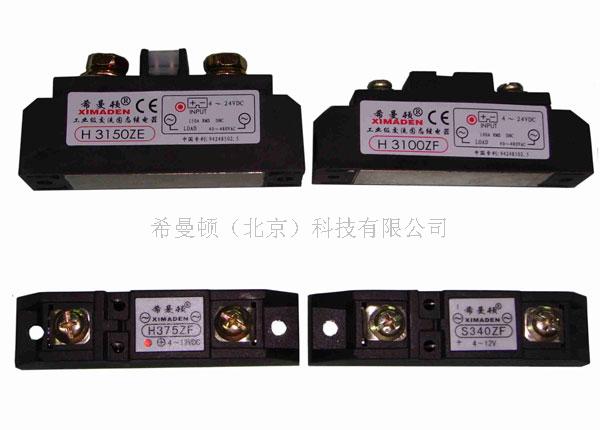

希曼顿固态继电器，工业级交流固态继电器，H3500/H340

位字母  |  第二位数字  |  第三四位数字  |  第二个字母  |    第三个字母
    分类符            交流工作电压            交流有效值            工作方式              封装形式
S：普通型          2：220VAC                  工作电流              Z：零调压          散热器固定型↓
H：增强型          3：380VAC                                                  P：调相型              K，F，E，D
R：固态调压器                                                                                                  线路板焊接↓
K：扩展型                                                                                                              W1，W2卧式
L-立式；L2-立式金属壳
                                                                                                                  C型线路板插接式
例：S240ZK表示双向硅，220VAC工作电压，40A工作电流，过零控制方式，外型为K型
        H3340ZE  表示单硅反并联，380AVC电压，340A工作电流，过零触发方式，外型为E型
  各种型号尺寸图：K    F    E    D    C    L    L2    W1    W2    N
  ★注  意：１．  一般纯阻负载：固态继电器电流容量应大于负载最大电流。硅碳棒负载：当取消变压器时，硅碳棒应串联，使之能够承  受电源电压的70%~80%以上。硅碳棒在700~800℃存在负阻区，固态继电器电流容量应大于负载最大电流的1.倍。      ２．电热管负载：电热管易受潮、局部短路和放电打火等，固态继电器电流容量应大于负载最大电流的1.7倍。３．变压器负载：应带电流限制功能，电流容量应大于负载最大电流的2~2.5倍。特殊负载应加大电流容量，订货时声明。
S系列普通型工作电流          产品型号            交流工作电压    H系列增强工作电流        产品型号          交流工作电压
3A                          S203Z  L                      220VAC    60A                      H260Z  K，F                220VAC
3A                          S203Z  C                      220VAC    60A                      H360Z  K，F                380VAC
3A                          S203Z  W2                    220VAC    80A                      H380Z  K，F                  380VAC
4A                          S204Z  W1                    220VAC    100A                      H3100Z  K，F            380VAC
6A                          S206Z  L2                    220VAC    120A                      H3120ZF                      380VAC
8A                          S208Z  K                      220VAC    150A                      H3150ZE                      380VAC
10A                          S210Z  K                      220VAC    200A                      H3200ZE                      380VAC
12A                          S212Z  K                      220VAC    220A                      H3220ZE                      380VAC
20A                          S220Z  K                      220VAC    250A                      H3250ZE                      380VAC
25A                          S225Z  K  F                  220VAC    300A                      H3300ZD                      380VAC
40A                          S240Z  K  F                  220VAC    340A                      H3340ZN                      380VAC
3A                          S303Z  L                      380VAC    360A                      H3360ZE                      380VAC
3A                          S303Z  C                      380VAC    400A                      K3400Z                        380VAC
3A                          S303Z  W2                    380VAC    500A                      K3500Z                        380VAC
4A                          S304Z  W1                    380VAC
6A                          S306Z  L2                    380VAC
8A                          S308Z  K                      380VAC
10A                          S310Z  K                      380VAC
12A                          S312Z  K                      380VAC
20A                          S320Z  K                      380VAC
25A                          S325Z  K  F                  380VAC
40A                          S340Z  K  F                  380VAC    ★触发方式P型定货时请指明
★定货声明：SSR功率扩展，阻容吸收漏电会产生误    ★选件：恒流输入：12mA    4-32VDC
触发，定货应声明无RC吸收    ★以上为硅片电力模块工艺，工业级工作电压50-430VAC
★请注意外型封装K，F区别
  希曼顿带阻容吸收的（0.1μ180Ω）晶闸管反并联模块：MTX两只单硅反并联；MFX单硅和二极管反并联
型号              单硅平均电流（A）      有效值电流（A）          电压            触发电流                外型
MTX/MFX55-12                55                          110                            >1200V          <  50mA                      F
MTX/MFX120-16/18        120                        290                            >1200V          <  50mA                      D
MTX/MFX180-16/18        180                        360                            >1400V          <  50mA                      D
MTX/MFX    250-16/18      250                      400                            >1000V          <  50mA
MTX/MFX    310-16/18      310                      500                            >1200V          <  50mA
