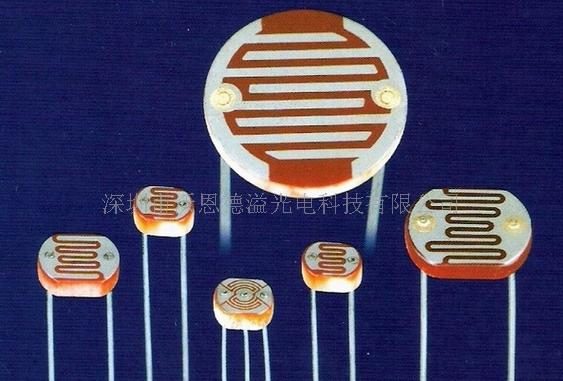

CdS PHOTOCONDUCTIVE CELLS GL5516
Light Resistance at 10Lux (at 25℃):------ 5---10KΩ
Gamma Value at 10-100Lux:---------------- 0.65
Dark Resistance at 0 Lux:-------------------- 0.5MΩ(min)
Power Dissipation(at 25℃)------------------ 100mw
Max Voltage (at 25℃)-------------------------- 150V DC or AC
Spectral Response peak (at 25℃)-------- 540nm
Ambient Temperature Range:-------------- ﹣30～+70℃
* Light Resistance: Measured at 10 Lux with standard light A (2854K color temperature) and 2hr pre-illumination at 400-600 lux prior testing.
* Dark Resistance:Measured 10 seconds after closed 10 Lux.
* The error of γ is ± 0.1.
09
09
2021
红外摄像机用光敏电阻（一致性和稳定性好） CdS
来源:[深圳市沃恩德溢光电科技有限公司]
联系人：刘女士
手机：13798541774
电话：0755-86192686
传真：0755-86195596
QQ：303124706
Email：liu@oande.cn
地址：广东省深圳市深圳市南山区南海大道还玩那个大厦座31H
品牌：OANDE
价格：面议
元/PC
供应地：广东省深圳市
产品型号：GL5516
