Model
型号
US-520R
Wire Diameter
线径
?0.3~?2.5MM
Axis
轴数
4~6
Wire Feed Wheel Sets
送线轴组数
2Sets
Wire Feeding Axis
送线轴功率
2.7 KW
Quill Rotary Axis
转芯轴功率
1.0KW
Wire Rotary Axis
转线轴功率
2.7KW
Cam Axis
凸轮轴功率
2.7KW
Spinner Axis(Optional)
卷曲轴功率
0.4KW
Dimension (LxWxH)
尺寸(长×宽×高)
1500x1600x1700 (mm)
Weight (kg)
重量(千克)
1400kg
Machine features:
机器特性:
1. This spring former is equipped with four axes of cam, wrie feeding, mandrel rotation, wire rotation as standard (other axes can be customized, Customized configuration includes spinner internal/external, servo controlled left/right slide).
此弹簧机标配四轴凸轮、送线、芯轴旋转和导线旋转功能(其他轴可定制,定制配置包括内外旋转器、伺服控制的左右滑台)。
2. The machine uses Sanyo servo motors, high-precision reducers, and high-precision bearing gears imported from Japan, which provide an effective guarantee for the stable and high-energy operation of the machine and extend the service life of the machine.
本机采用日本进口的三洋伺服电机、高精度减速器和高精度轴承齿轮,为机器的稳定高效运行提供了有效保障,并延长了机器的使用寿命。
3. The machine is equipped with an industrial professional-grade computer operating system, multi-language display, easy-to-understand operation, rich functions, and can meet complex multi-task requirements.
本机配备了工业级专业计算机操作系统,支持多语言显示,操作简便易懂,功能丰富,能够满足复杂的多任务需求。
4. The operating system has intelligent overload protection, automatic detection and alarm of wire feed rack disconnection, and the intelligent and sensitive protection module can provide effective protection for the safety of the operator and the spring machine.
操作系统具备智能过载保护功能,能自动检测和报警送线架断线情况,其智能灵敏的保护模块可为操作员和弹簧机的安全提供有效保障。
06
06
2025

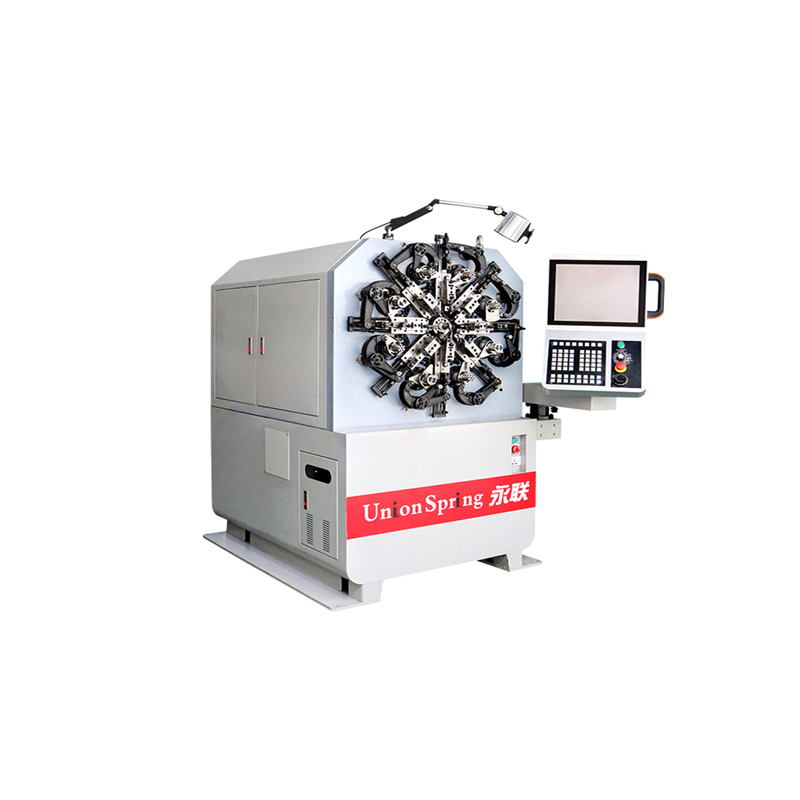

us-520r数控凸轮转线弹簧机
来源:[广东永厚科技控股有限公司]
联系人:张先生
手机:13537656521
电话:-
传真:-
QQ:3868341200
Email:
地址:地区
品牌:永联集团
价格:50000.00
元/永联集团
供应地:
产品型号:us-520r
