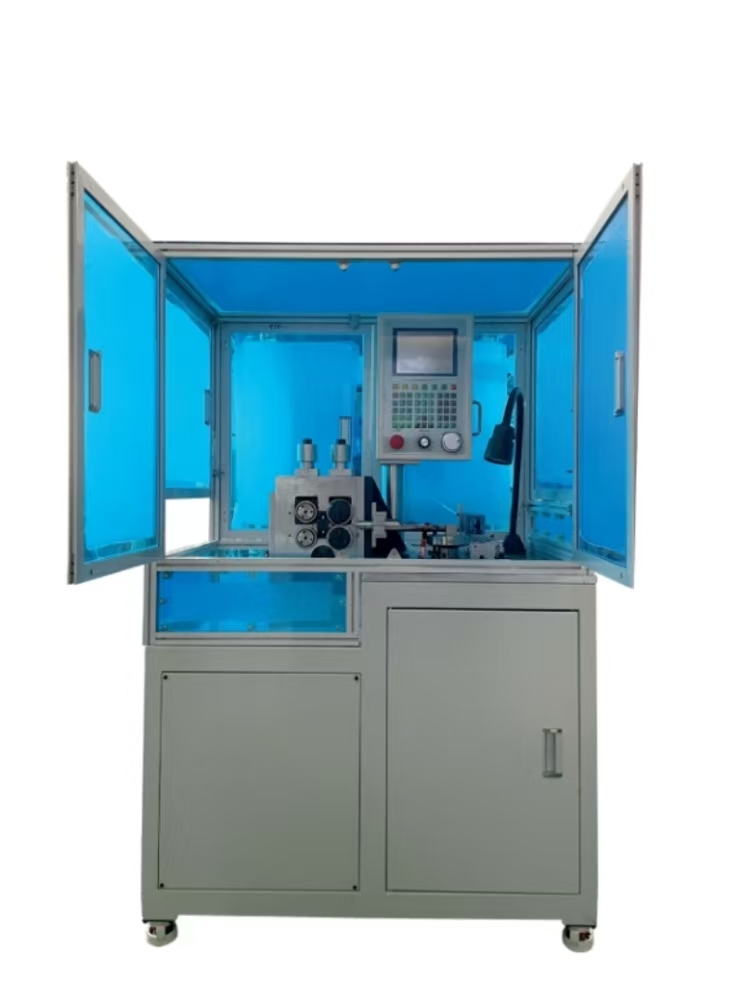

扁铜线单绕机 flat copper single winding machine

1.机器2轴分别为送线轴、绕线轴。成型部分由手臂轴配合完成。各轴相互独立、相互关联。

2.机器采用独立送线装置，可实现单次、多次送线，任意长度送线。

3.机器采用电脑操作界面，可保存各规格产品的调机参数。

4.机器细节描述:材料自放料架始，依次经过校直机构、送线机构，

成型机构、卷曲主轴。放线架光电感应送线;校直器(单元)对

5.线材进行双向校直;送线采用气缸夹持、伺服模组送料，卷曲绕

线成型。

1. The two axes of the machine are the wire feeding axis and the winding axis. The forming part is completed by the cooperation of the winding axis. The axes are independent and interrelated.

2. The machine adopts an independent wire feeding device, which can realize single, multiple wire feeding, and wire feeding of any length.

3. The machine adopts a computer operation interface, which can save the adjustment parameters of products of various specifications.

4. Detailed deSCRJPTion of the machine: The material starts from the wire decolier, and then passes through the straightening mechanism, the wire feeding mechanism, the forming mechanism, and the curling spindle. Wire feeding by photoelectric sensor on pay-off stand; straightener (unit) straightens the wire in two directions; wire feeding adopts cylinder clamping, servo module feeding, spinner and winding forming.
