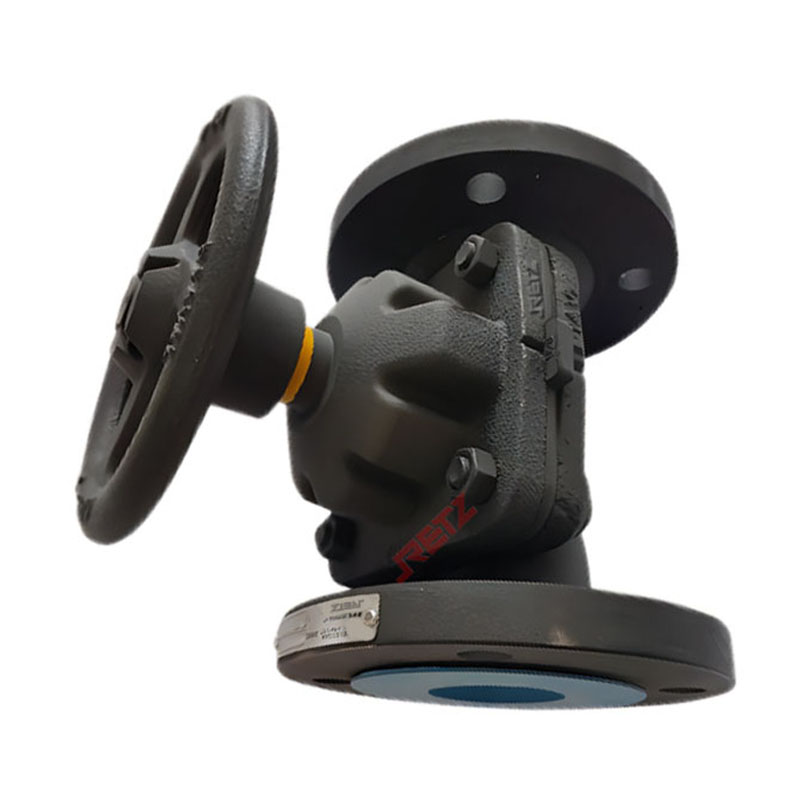

品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……进口英标隔膜阀关闭件-软质隔膜，由阀杆控制并做上、下运动以切断介质。操纵机构和介质由隔膜隔开，只有阀体和隔膜会与介质相接触，其他的阀杆及零部件等并不会接触，因此常常用于卫生级管道环境和有着特殊介质接触规定的环境Retz Imported BS British standard diaphragm valve closure component - soft diaphragm, controlled by the valve stem and performing up and down movements to cut off the medium. The operating mechanism and medium are separated by a diaphragm, and only the valve body and diaphragm will come into contact with the medium. Other valve stems and components will not come into contact, so they are often used in sanitary pipeline environments and environments with special medium contact regulations

规格尺寸：DN15～DN200”

适用压力：PN16

适用温度：-20~100℃~180℃

控制Control: 手动、气动、电动Manual, pneumatic, electric

进口英标隔膜阀主要性能 Main performance

1.阀座零泄漏 Zero leakage of valve seat

可挠性隔膜将流体隔断，因此阀座无泄漏  The flexible diaphragm blocks the fluid, so the valve seat has no leakage

采用橡胶隔膜时，即使流体内有些异物夹杂也能完全切断 When using rubber diaphragm, even if there are some foreign matters in the fluid, it can be completely cut off

2.耐蚀性、耐化学性优异 Excellent corrosion resistance and chemical resistance

通过橡胶、氟树脂等各种衬里阀体和丰富的隔膜材料相组合，可制造适合各种流体规格的阀，性价比优于特殊合金类材料 Through the combination of rubber, fluororesin and other lining valve bodies and abundant diaphragm materials, valves suitable for various fluid specifications can be manufactured, and the cost performance is better than that of special alloy materials

RETZ的隔膜阀可以满足工控系统的截断、调节、防腐、粘性流体、纤维质流体、泥浆、污泥、悬浮固态物、卫生洁净等流体的控制RETZ's diaphragm valve can meet the requirements of industrial control systems for cutting off, regulating, anti-corrosion, viscous fluid, fibrous fluid, mud, sludge, suspended solids, hygiene, and other fluid control

产品涵盖了：进口气动隔膜阀、电动隔膜阀、衬胶隔膜阀、衬氟隔膜阀、直通式隔膜阀、角式隔膜阀、美标隔膜阀、德标隔膜阀、日标隔膜阀、英标隔膜阀、搪玻璃隔膜阀、真空隔膜阀、不锈钢隔膜阀、卫生级隔膜阀、无衬里隔膜阀、PVC隔膜阀、PFA高洁净氟塑料隔膜阀、高纯膜片阀The products cover: imported pneumatic diaphragm valves, electric diaphragm valves, rubber lined diaphragm valves, fluorine lined diaphragm valves, straight through diaphragm valves, angle diaphragm valves, American standard diaphragm valves, German standard diaphragm valves, Japanese standard diaphragm valves, British standard diaphragm valves, glass lined diaphragm valves, vacuum diaphragm valves, stainless steel diaphragm valves, sanitary grade diaphragm valves, unlined diaphragm valves, PVC diaphragm valves, PFA high cleaning fluorine plastic diaphragm valves, high-purity diaphragm valves

进口英标隔膜阀技术性能规范 Technical performance specifications

1	阀体/阀盖	HT250	WCB	CF8	CF8M	CF3	CF3M
2	阀瓣/阀杆	35	1cr13	SS304	SS316	SS304L	SS316L
3	衬里/阀座	PTFE、FEP、PFA、橡胶
4	隔膜	FEP(F46)/CR(氯丁橡胶)、PFA（可溶性F4）/FPDM（乙丙橡胶）
5	支架	WCB			CF8	CF8
6	阀杆螺母	ZCuAI10Fe3			ZCuAI10Fe3	ZCuAI10Fe3
7	紧固螺栓	35			1Cr17Ni2	1Cr18Ni9Ti
8	螺母	45			0Cr18Ni9	0Cr18Ni9
9	手轮	WCB			WCB	WCB
