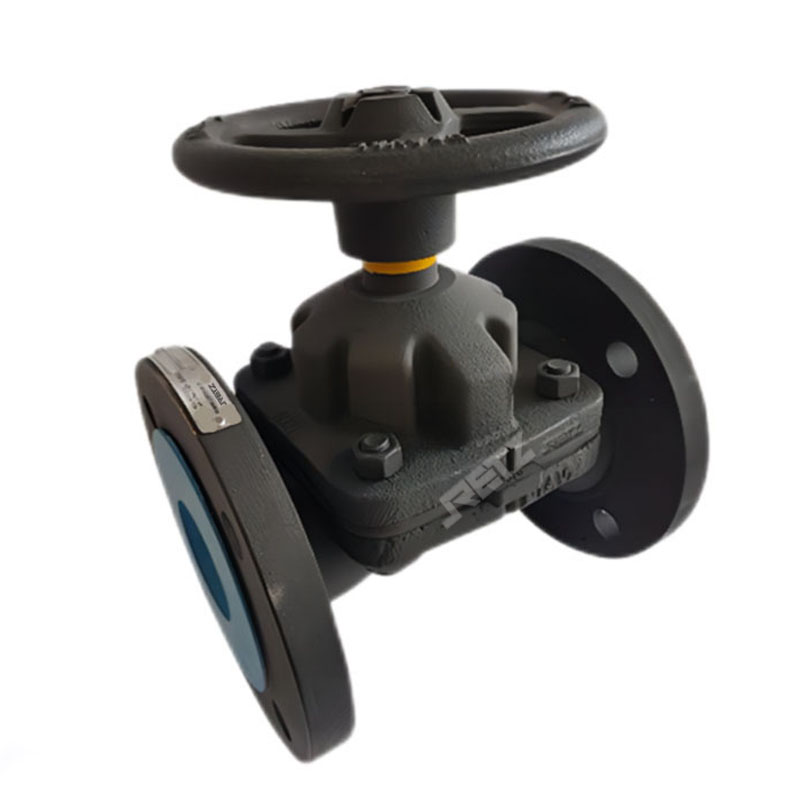

品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……进口美标隔膜阀采用PTFE隔膜时专用于耐酸碱、化工溶剂等高腐蚀腐性介质，采用橡胶隔膜时专用于含有弱酸、弱碱、无机盐、粘性流体、石灰浆、纤维状，粉末状等的控制Retz When imported American standard diaphragm valves use PTFE diaphragms, they are specifically designed for high corrosion and corrosion resistant media such as acid and alkali, chemical solvents, etc. When using rubber diaphragms, they are specifically designed for control of media containing weak acids, weak alkalis, inorganic salts, viscous fluids, lime slurry, fibrous, powdered, etc

规格尺寸：1/2～12”

适用压力：125LB/15OLB

适用温度：-20~100℃~180℃

控制Control: 手动、气动、电动Manual, pneumatic, electric

主要性能 Main performance

进口美标隔膜阀可挠性隔膜将流体隔断，用螺栓连接在阀杆上,操作时上下移动，当膜片上升时阀打开，当膜片下降时，阀关闭 The flexible diaphragm separates the fluid and is bolted to the valve stem. It moves up and down during operation, opening the valve when the diaphragm rises and closing when the diaphragm drops

阀体与盖被中间隔膜隔开，使得隔膜上方的阀盖、阀杆等零件不受介质侵蚀。而且无外部泄漏或外界空气进入污染流体The valve body and cover are separated by an intermediate diaphragm, ensuring that the valve cover, valve stem, and other parts above the diaphragm are not corroded by the medium. And there is no external leakage or external air entering the contaminated fluid

进口美标隔膜阀技术性能规范 Technical performance specifications

1	阀体/阀盖	HT250	WCB	CF8	CF8M	CF3	CF3M
2	阀瓣/阀杆	35	1cr13	SS304	SS316	SS304L	SS316L
3	衬里/阀座	PTFE、FEP、PFA、橡胶
4	隔膜	FEP(F46)/CR(氯丁橡胶)、PFA（可溶性F4）/FPDM（乙丙橡胶）
5	支架	WCB			CF8	CF8
6	阀杆螺母	ZCuAI10Fe3			ZCuAI10Fe3	ZCuAI10Fe3
7	紧固螺栓	35			1Cr17Ni2	1Cr18Ni9Ti
8	螺母	45			0Cr18Ni9	0Cr18Ni9
9	手轮	WCB			WCB	WCB



























RETZ的隔膜阀可以满足工控系统的截断、调节、防腐、粘性流体、纤维质流体、泥浆、污泥、悬浮固态物、卫生洁净等流体的控制RETZ's diaphragm valve can meet the requirements of industrial control systems for cutting off, regulating, anti-corrosion, viscous fluid, fibrous fluid, mud, sludge, suspended solids, hygiene, and other fluid control

产品涵盖了：进口气动隔膜阀、电动隔膜阀、衬胶隔膜阀、衬氟隔膜阀、直通式隔膜阀、角式隔膜阀、美标隔膜阀、德标隔膜阀、日标隔膜阀、英标隔膜阀、搪玻璃隔膜阀、真空隔膜阀、不锈钢隔膜阀、卫生级隔膜阀、无衬里隔膜阀、PVC隔膜阀、PFA高洁净氟塑料隔膜阀、高纯膜片阀The products cover: imported pneumatic diaphragm valves, electric diaphragm valves, rubber lined diaphragm valves, fluorine lined diaphragm valves, straight through diaphragm valves, angle diaphragm valves, American standard diaphragm valves, German standard diaphragm valves, Japanese standard diaphragm valves, British standard diaphragm valves, glass lined diaphragm valves, vacuum diaphragm valves, stainless steel diaphragm valves, sanitary grade diaphragm valves, unlined diaphragm valves, PVC diaphragm valves, PFA high cleaning fluorine plastic diaphragm valves, high-purity diaphragm valves
