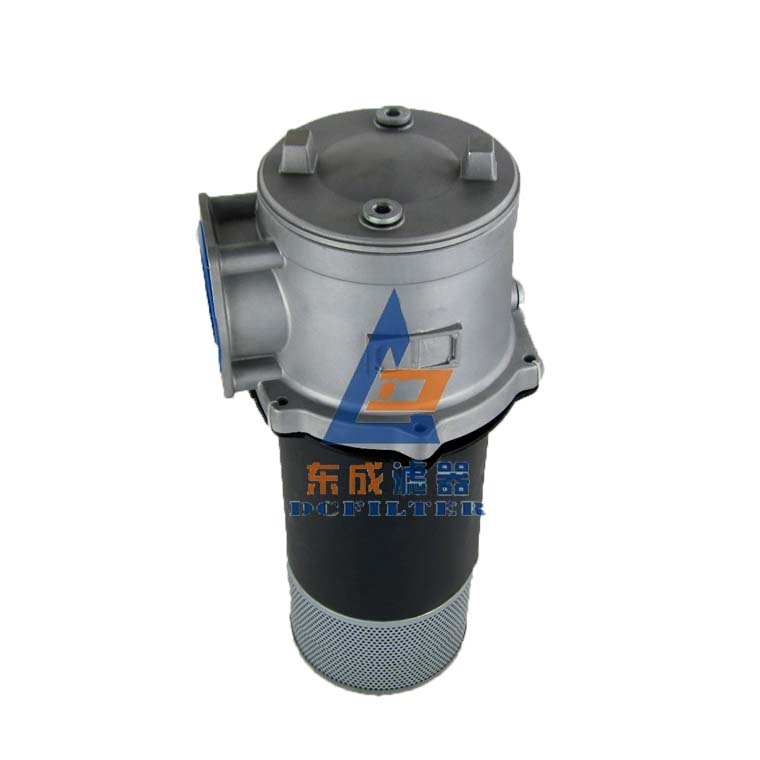

RFB-630*10Y过滤器简介

  RFB系列直回自封式磁性回油过滤器用于液压系统回油精过滤，滤除液压系统中由于元件磨损产生的金属颗粒，以及密封件磨损的橡胶杂质等污染物，使流回油箱的油液保持清洁。



RFB过滤器参数说明：

介质：一般液压油、水-乙二醇

公称流量：25-1300L/min

过滤精度：1-30μm

工作温度：0-100℃

过滤材质：玻璃纤维滤材

公称压力：1.6MPa

产品包装：中性木箱包装

货运方式：物流或快递

生产厂家：新乡市东成滤器有限公司

咨询热线：15090316524





RFB-630*10Y过滤器性能与特点：

1、本过滤器可直接安装在油箱顶部，侧面或底部，过滤器滤头露于油箱外，筒体部分浸入油箱内，从而简化了系统管路，使系统布置较为紧凑。

2、本过滤器配有永久磁铁，可滤除油液中1微米以上的铁磁性颗粒。

3、具有旁通阀：冷油启动时，因系统液温过低，流量脉动等因素造成过滤器压差过大，主机不能工作，以及滤芯被污染物堵塞情况下，滤盖下部并联的旁通阀会自动开启，（开启压力差为0.4MPA）以保护滤芯及系统正常工作。

4、具有止回阀：过滤器置于油箱侧边和底部，在更换滤芯时，油箱内的油液不会流出。

5、设有液流扩散器，与筒体下部组成的液流扩散器能使回油平稳地流入油箱内，不易产生气泡，减少重新进入的空气，减弱已沉积污染物的骚动，且当旁通阀开启时，能起粗过滤的作用。

6、具有目测指示和电发讯二合一发讯器装置、溢流管、集污蛊。当滤芯逐步堵塞后，可在目测表上观察滤芯堵塞情况，同时还可以接电发讯器。在滤芯底部设置溢流管及集污蛊，更换滤芯时可随同一起带出，从而避免了污染物重新掉入油箱内的现象。

7、滤芯采用玻璃纤维过滤材质具有过滤精度高、通油能力大、原始压力损失小、纳污量大等优点。其过滤精度以绝对过滤精度标定，过滤比β3、5、10、20≥200，过滤效率n≥99.5%，符合ISO标准。

8、具有安装连接及更换滤芯方便的特点：进油口为法兰连接，对于滤头与油箱安装法兰，用户可按图表中尺寸在油箱板上设计加工6只法兰螺孔即可。旋开过滤器顶盖可更换滤芯或向油箱内加油。

9、具有附带回油孔：在过滤器滤头侧面与顶部设有两个小回油孔，可作系统中少了油液回入油箱过滤或向油箱内少量加油之用，过滤器装在油箱侧面或底部时，旋开小孔盖又可放除过滤器内含有污染杂物的油液，从而延长滤芯使用寿命，又有利于油液的净化。





RFB-630*10Y过滤器技术参数

型号 Model	公称流量 （L/min）	过滤精度 （μm）	通径 （mm）	压力损失		发讯装置		滤芯型号 Model of element
				Initial	max	（V）	（A）
RFB-25X*C/Y	25	1 3 5 10 20 30	1.6	≤0.075	0.35	12   24   63   220	2.5   2   1.5   0.25	FBX-25X*
RFB-40X*C/Y	40							FBX-40X*
RFB-63X*C/Y	63							FBX-63X*
RFB-100X*C/Y	100							FBX-100X*
RFB-160X*C/Y	160							FBX-160X*
RFB-250X*C/Y	250							FBX-250X*
RFB-400X*C/Y	400							FBX-400X*
RFB-630X*C/Y	630							FBX-630X*
RFB-800X*C/Y	800							FBX-800X*
RFB-1000X*C/Y	1000							FBX-1000X*
RFB-1300X*C/Y	1300							FBX-1300X*



注：*为过滤精度，若使用介质为水-乙二醇，公称流量160L/min，过滤精度10μm，带CYB-I型发讯器，则过滤器型号为RFB.BH-160X10Y，滤芯型号为：FBX.BH-160X10。





RFB过滤器型号：



RFB-25X1  RFB-25X1C  RFB-25X1Y  RFB.BH-25X1  RFB.BH-25X1C  RFB.BH-25X1Y

RFB-25X3  RFB-25X3C  RFB-25X3Y  RFB.BH-25X3  RFB.BH-25X3C  RFB.BH-25X3Y

RFB-25X5  RFB-25X5C  RFB-25X5Y  RFB.BH-25X5  RFB.BH-25X5C  RFB.BH-25X5Y

RFB-25X10  RFB-25X10C  RFB-25X10Y  RFB.BH-25X10  RFB.BH-25X10C  RFB.BH-25X10Y

RFB-25X20  RFB-25X20C  RFB-25X20Y  RFB.BH-25X20  RFB.BH-25X20C  RFB.BH-25X20Y

RFB-25X30  RFB-25X30C  RFB-25X30Y  RFB.BH-25X30  RFB.BH-25X30C  RFB.BH-25X30Y

RFB-40X1  RFB-40X1C  RFB-40X1Y  RFB.BH-40X1  RFB.BH-40X1C  RFB.BH-40X1Y

RFB-40X3  RFB-40X3C  RFB-40X3Y  RFB.BH-40X3  RFB.BH-40X3C  RFB.BH-40X3Y

RFB-40X5  RFB-40X5C  RFB-40X5Y  RFB.BH-40X5  RFB.BH-40X5C  RFB.BH-40X5Y

RFB-40X10  RFB-40X10C  RFB-40X10Y  RFB.BH-40X10  RFB.BH-40X10C  RFB.BH-40X10Y

RFB-40X20  RFB-40X20C  RFB-40X20Y  RFB.BH-40X20  RFB.BH-40X20C  RFB.BH-40X20Y

RFB-40X30  RFB-40X30C  RFB-40X30Y  RFB.BH-40X30  RFB.BH-40X30C  RFB.BH-40X30Y

RFB-63X1  RFB-63X1C  RFB-63X1Y  RFB.BH-63X1  RFB.BH-63X1C  RFB.BH-63X1Y

RFB-63X3  RFB-63X3C  RFB-63X3Y  RFB.BH-63X3  RFB.BH-63X3C  RFB.BH-63X3Y

RFB-63X5  RFB-63X5C  RFB-63X5Y  RFB.BH-63X5  RFB.BH-63X5C  RFB.BH-63X5Y

RFB-63X10  RFB-63X10C  RFB-63X10Y  RFB.BH-63X10  RFB.BH-63X10C  RFB.BH-63X10Y

RFB-63X20  RFB-63X20C  RFB-63X20Y  RFB.BH-63X20  RFB.BH-63X20C  RFB.BH-63X20Y

RFB-63X30  RFB-63X30C  RFB-63X30Y  RFB.BH-63X30  RFB.BH-63X30C  RFB.BH-63X30Y

RFB-100X1  RFB-100X1C  RFB-100X1Y  RFB.BH-100X1  RFB.BH-100X1C  RFB.BH-100X1Y

RFB-100X3  RFB-100X3C  RFB-100X3Y  RFB.BH-100X3  RFB.BH-100X3C  RFB.BH-100X3Y

RFB-100X5  RFB-100X5C  RFB-100X5Y  RFB.BH-100X5  RFB.BH-100X5C  RFB.BH-100X5Y

RFB-100X10  RFB-100X10C  RFB-100X10Y  RFB.BH-100X10  RFB.BH-100X10C  RFB.BH-100X10Y RFB-100X20  RFB-100X20C  RFB-100X20Y  RFB.BH-100X20  RFB.BH-100X20C  RFB.BH-100X20Y  RFB-100X30  RFB-100X30C  RFB-100X30Y  RFB.BH-100X30  RFB.BH-100X30C  RFB.BH-100X30Y

RFB-160X1  RFB-160X1C  RFB-160X1Y  RFB.BH-160X1  RFB.BH-160X1C  RFB.BH-160X1Y

RFB-160X3  RFB-160X3C  RFB-160X3Y  RFB.BH-160X3  RFB.BH-160X3C  RFB.BH-160X3Y

RFB-160X5  RFB-160X5C  RFB-160X5Y  RFB.BH-160X5  RFB.BH-160X5C  RFB.BH-160X5Y

RFB-160X10  RFB-160X10C  RFB-160X10Y  RFB.BH-160X10  RFB.BH-160X10C  RFB.BH-160X10Y

RFB-160X20  RFB-160X20C  RFB-160X20Y  RFB.BH-160X20  RFB.BH-160X20C  RFB.BH-160X20Y

RFB-160X30  RFB-160X30C  RFB-160X30Y  RFB.BH-160X30  RFB.BH-160X30C  RFB.BH-160X30Y

RFB-250X1  RFB-250X1C  RFB-250X1Y  RFB.BH-250X1  RFB.BH-250X1C  RFB.BH-250X1Y

RFB-250X3  RFB-250X3C  RFB-250X3Y  RFB.BH-250X3  RFB.BH-250X3C  RFB.BH-250X3Y

RFB-250X5  RFB-250X5C  RFB-250X5Y  RFB.BH-250X5  RFB.BH-250X5C  RFB.BH-250X5Y

RFB-250X10  RFB-250X10C  RFB-250X10Y  RFB.BH-250X10  RFB.BH-250X10C  RFB.BH-250X10Y

RFB-250X20  RFB-250X20C  RFB-250X20Y  RFB.BH-250X20  RFB.BH-250X20C  RFB.BH-250X20Y

RFB-250X30  RFB-250X30C  RFB-250X30Y  RFB.BH-250X30  RFB.BH-250X30C  RFB.BH-250X30Y

RFB-400X1  RFB-400X1C  RFB-400X1Y  RFB.BH-400X1  RFB.BH-400X1C  RFB.BH-400X1Y

RFB-400X3  RFB-400X3C  RFB-400X3Y  RFB.BH-400X3  RFB.BH-400X3C  RFB.BH-400X3Y

RFB-400X5  RFB-400X5C  RFB-400X5Y  RFB.BH-400X5  RFB.BH-400X5C  RFB.BH-400X5Y

RFB-400X10  RFB-400X10C  RFB-400X10Y  RFB.BH-400X10  RFB.BH-400X10C  RFB.BH-400X10Y

RFB-400X20  RFB-400X20C  RFB-400X20Y  RFB.BH-400X20  RFB.BH-400X20C  RFB.BH-400X20Y

RFB-400X30  RFB-400X30C  RFB-400X30Y  RFB.BH-400X30  RFB.BH-400X30C  RFB.BH-400X30Y

RFB-630X1  RFB-630X1C  RFB-630X1Y  RFB.BH-630X1  RFB.BH-630X1C  RFB.BH-630X1Y

RFB-630X3  RFB-630X3C  RFB-630X3Y  RFB.BH-630X3  RFB.BH-630X3C  RFB.BH-630X3Y

RFB-630X5  RFB-630X5C  RFB-630X5Y  RFB.BH-630X5  RFB.BH-630X5C  RFB.BH-630X5Y

RFB-630X10  RFB-630X10C  RFB-630X10Y  RFB.BH-630X10  RFB.BH-630X10C  RFB.BH-630X10Y

RFB-630X20  RFB-630X20C  RFB-630X20Y  RFB.BH-630X20  RFB.BH-630X20C  RFB.BH-630X20Y

RFB-630X30  RFB-630X30C  RFB-630X30Y  RFB.BH-630X30  RFB.BH-630X30C  RFB.BH-630X30Y

RFB-800X1  RFB-800X1C  RFB-800X1Y  RFB.BH-800X1  RFB.BH-800X1C  RFB.BH-800X1Y

RFB-800X3  RFB-800X3C  RFB-800X3Y  RFB.BH-800X3  RFB.BH-800X3C  RFB.BH-800X3Y

RFB-800X5  RFB-800X5C  RFB-800X5Y  RFB.BH-800X5  RFB.BH-800X5C  RFB.BH-800X5Y

RFB-800X10  RFB-800X10C  RFB-800X10Y  RFB.BH-800X10  RFB.BH-800X10C  RFB.BH-800X10Y

RFB-800X20  RFB-800X20C  RFB-800X20Y  RFB.BH-800X20  RFB.BH-800X20C  RFB.BH-800X20Y

RFB-800X30  RFB-800X30C  RFB-800X30Y  RFB.BH-800X30  RFB.BH-800X30C  RFB.BH-800X30Y

RFB-1000X1  RFB-1000X1C  RFB-1000X1Y  RFB.BH-1000X1  RFB.BH-1000X1C  RFB.BH-1000X1Y

RFB-1000X3  RFB-1000X3C  RFB-1000X3Y  RFB.BH-1000X3  RFB.BH-1000X3C  RFB.BH-1000X3Y

RFB-1000X5  RFB-1000X5C  RFB-1000X5Y  RFB.BH-1000X5  RFB.BH-1000X5C  RFB.BH-1000X5Y

RFB-1000X10  RFB-1000X10C  RFB-1000X10Y  RFB.BH-1000X10  RFB.BH-1000X10C  RFB.BH-1000X10Y

RFB-1000X20  RFB-1000X20C  RFB-1000X20Y  RFB.BH-1000X20  RFB.BH-1000X20C  RFB.BH-1000X20Y

RFB-1000X30  RFB-1000X30C  RFB-1000X30Y  RFB.BH-1000X30  RFB.BH-1000X30C  RFB.BH-1000X30Y

RFB-1300X1  RFB-1300X1C  RFB-1300X1Y  RFB.BH-1300X1  RFB.BH-1300X1C  RFB.BH-1300X1Y

RFB-1300X3  RFB-1300X3C  RFB-1300X3Y  RFB.BH-1300X3  RFB.BH-1300X3C  RFB.BH-1300X3Y

RFB-1300X5  RFB-1300X5C  RFB-1300X5Y  RFB.BH-1300X5  RFB.BH-1300X5C  RFB.BH-1300X5Y

RFB-1300X10  RFB-1300X10C  RFB-1300X10Y  RFB.BH-1300X10  RFB.BH-1300X10C  RFB.BH-1300X10Y

RFB-1300X20  RFB-1300X20C  RFB-1300X20Y  RFB.BH-1300X20  RFB.BH-1300X20C  RFB.BH-1300X20Y

RFB-1300X30  RFB-1300X30C  RFB-1300X30Y  RFB.BH-1300X30  RFB.BH-1300X30C  RFB.BH-1300X30Y
